Original price was: $91.29.$54.77Current price is: $54.77.
Suitable for use as service entrance equipment
Copper Bus with factory installed Main Breaker
Uses HS type hubs only
- Fast and Secure Payments
- Nature-friendly materials, for a better planet.
- Service that stands out, online and always timely.
- Expertly Sourced, Quality Guaranteed

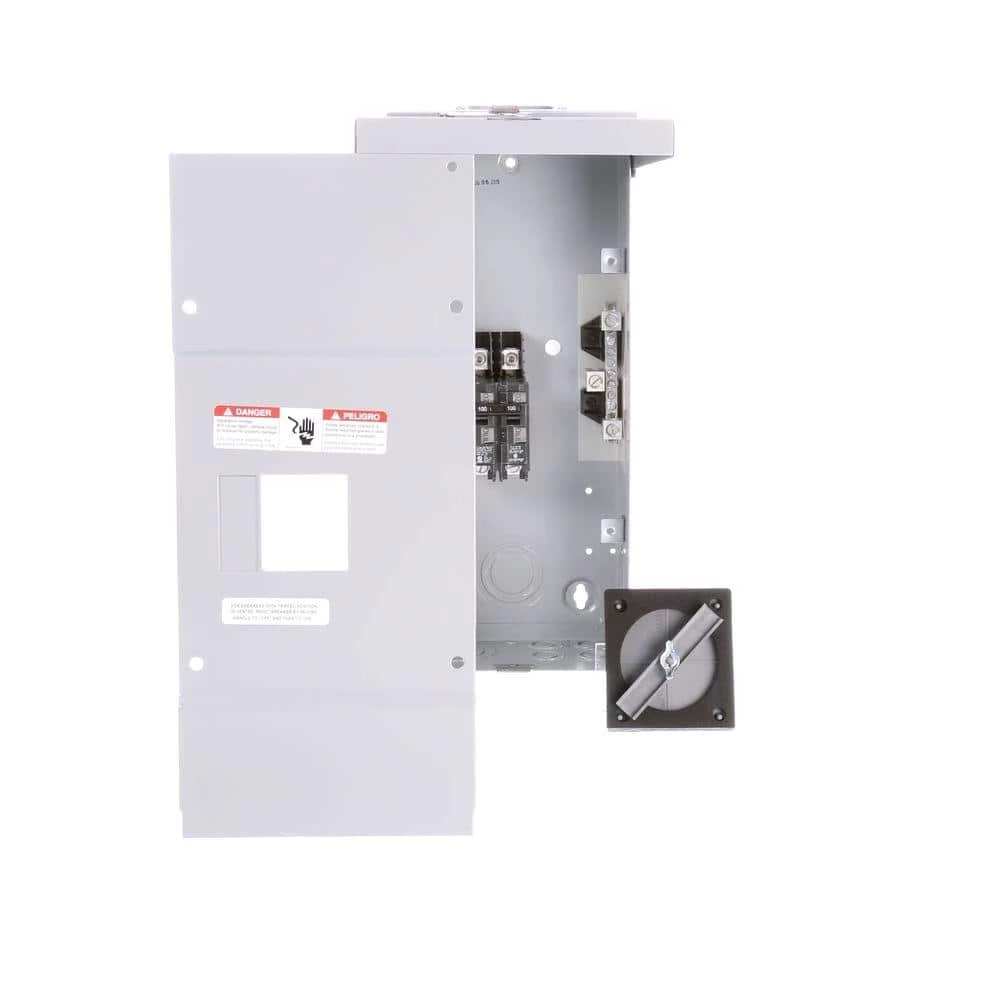

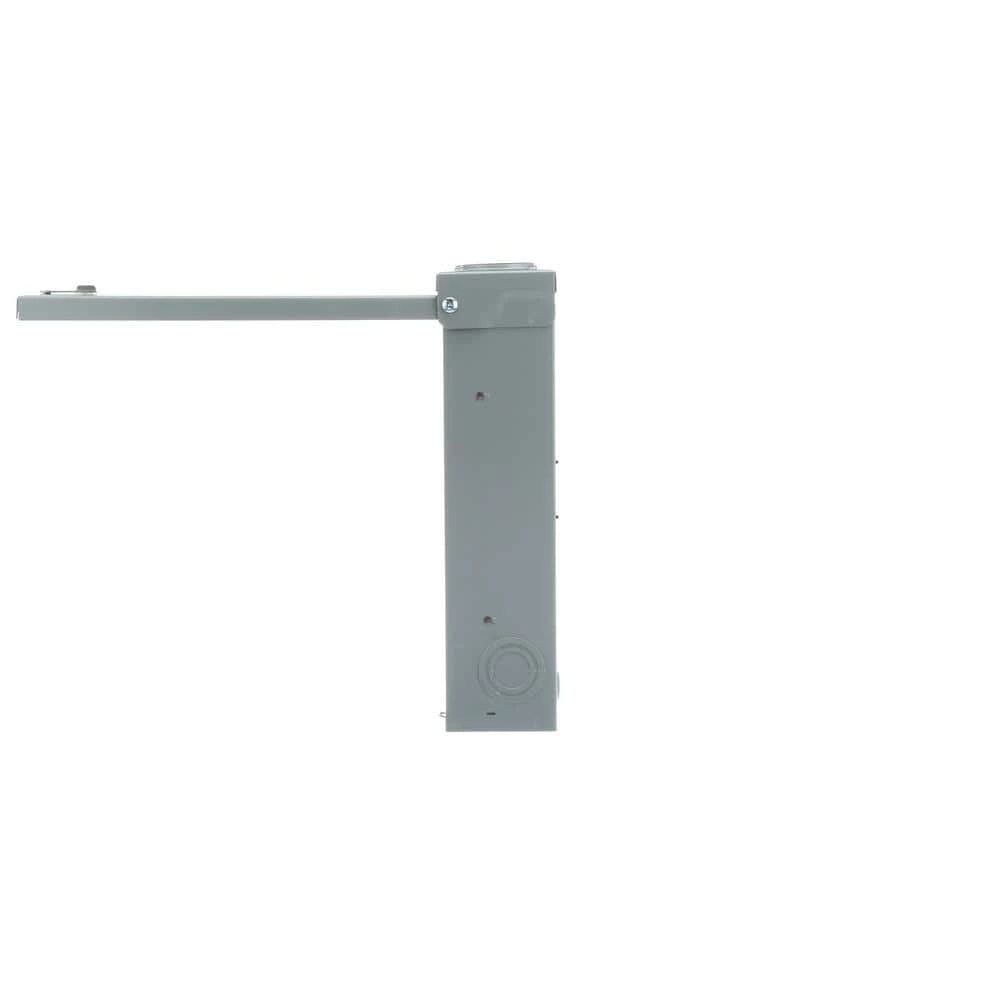

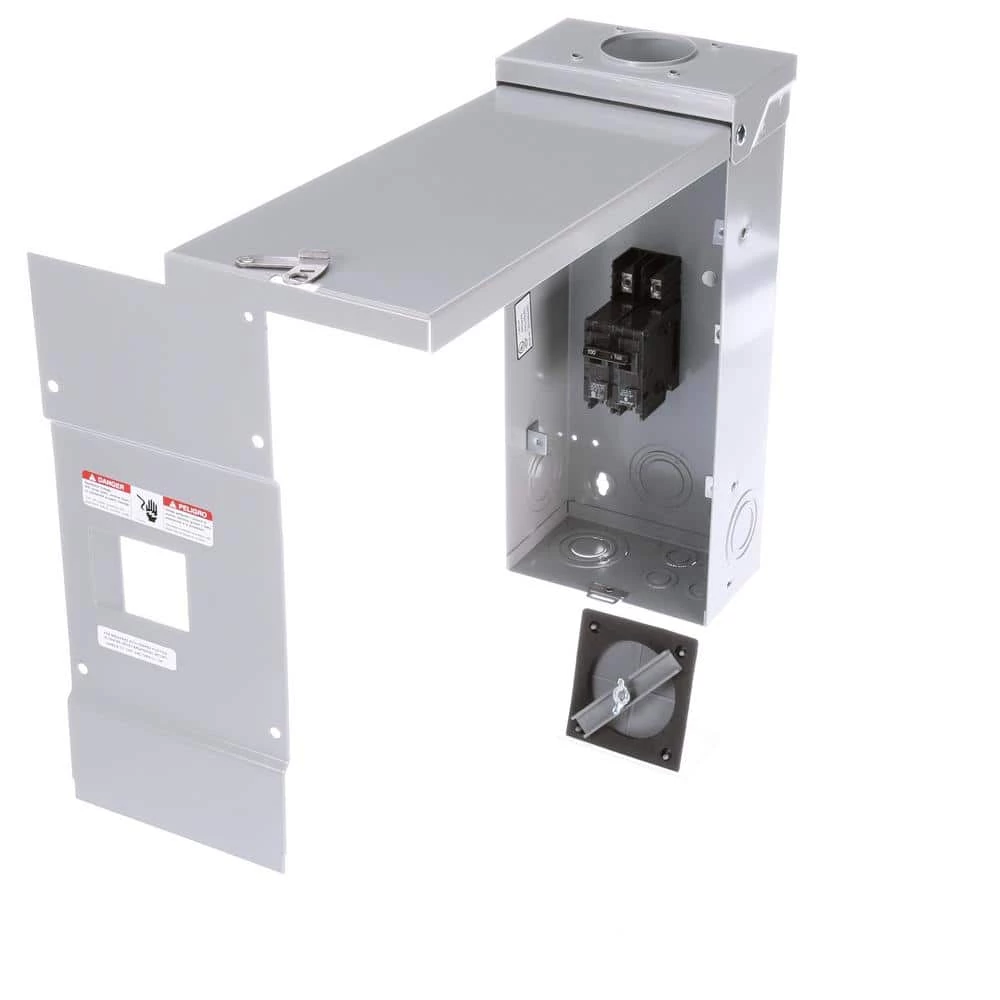

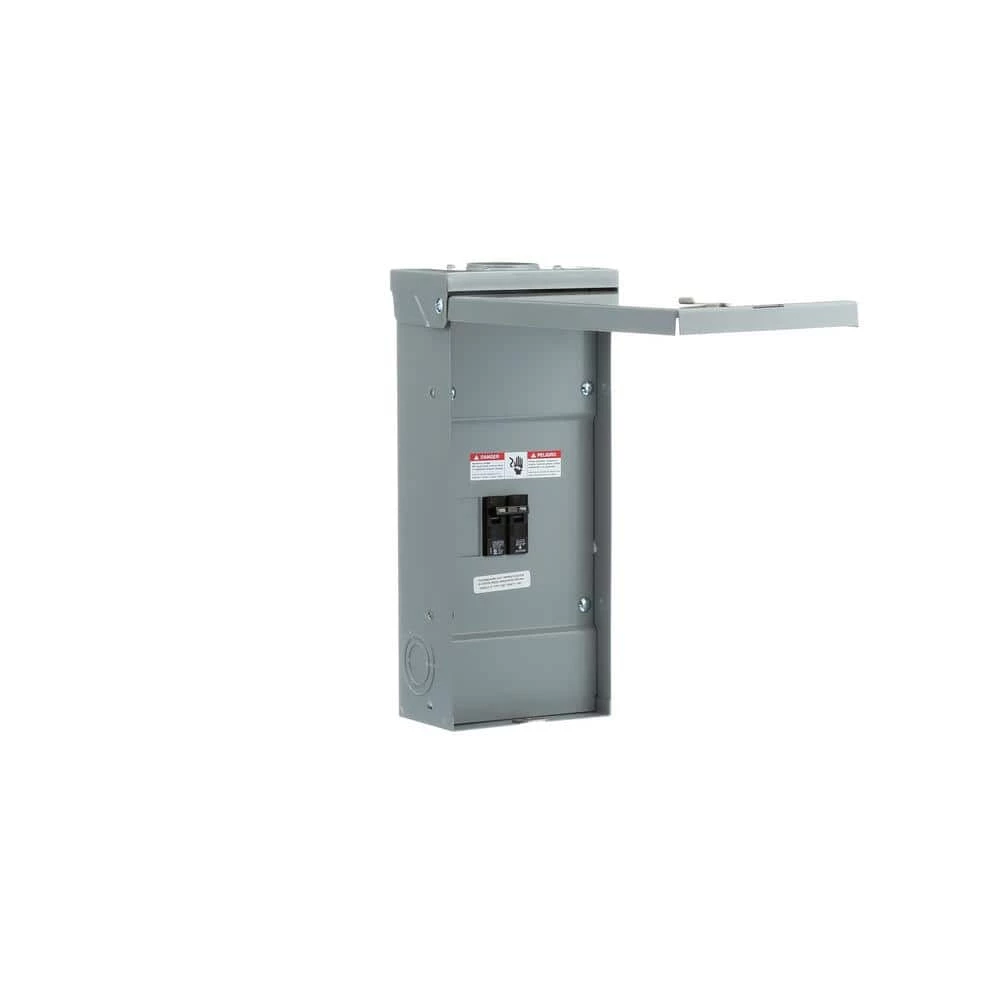

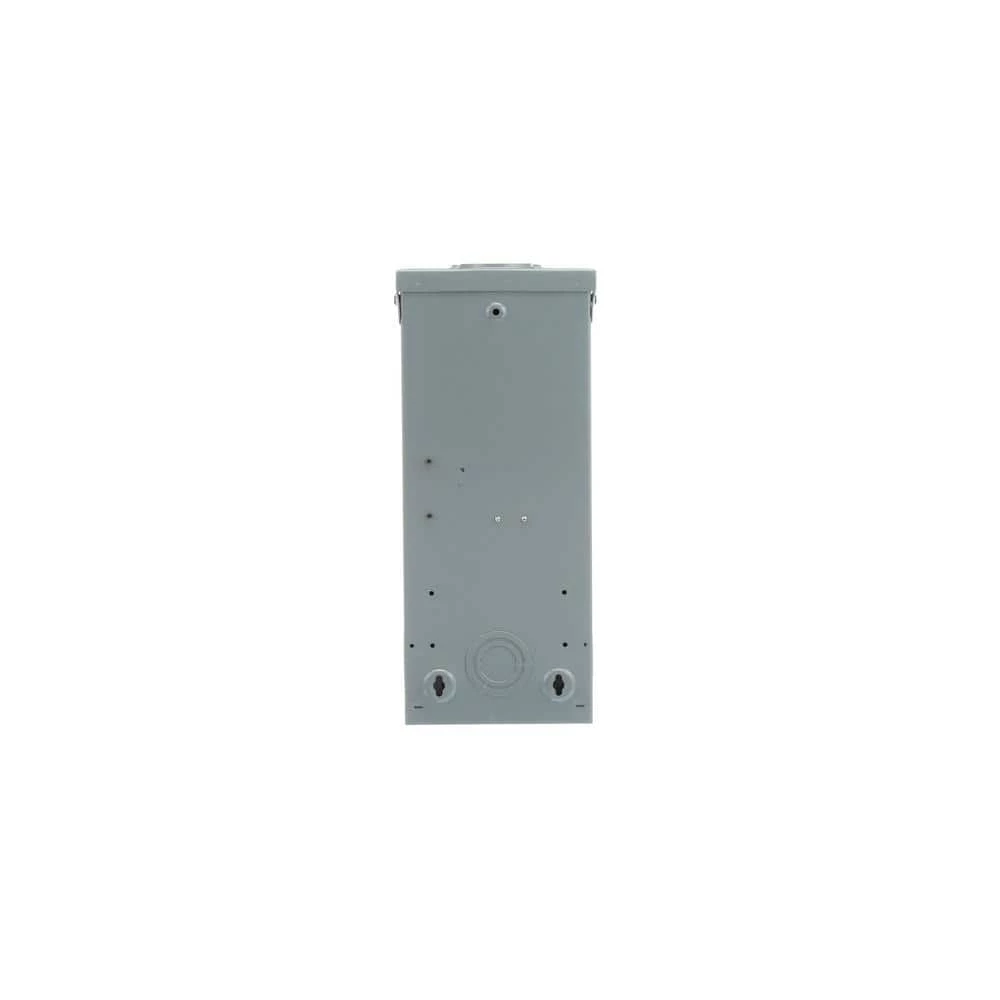

This 2-Space 2-Circuit type EQ Load Center features copper bus bars for increased conductivity. Includes a factory installed 100 Amp main breaker for overload and short-circuit protection. For use in outdoor applications.
- 2-space 2-circuit, 100 Amp main breaker, single phase panel
- Includes a factory installed 100 Amp main breaker
- Copper bus
- Designed for use exclusively with QP, QT, QPH, HQP, BQ, BQH, HBQ, QPP, QPPH, HQPP, QJ2, QJH2, and QJ2-H circuit breakers
- Suitable for use as service entrance equipment
- UL listed for 60/75° conductors
| Electrical Product Type | Load Center |
|---|---|
| Phase Type | 1 Phase |
| Load center height (in.) | 17.72 |
| Load center depth (in.) | 7.87 |
| Manufacturer Warranty | Lifetime |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 120/240 |
| Returnable | 90-Day |
| Product Weight (lb.) | 11.46 lb |
| Number of Spaces | 2 |
| Indoor/Outdoor | Outdoor |
| Number of Circuits | 2 |
| NEMA Configuration Receptacle | No Receptacle |
| NEMA Configuration | NEMA 3R |
| Mounting Type | Bolt On |
| Maximum Amperage (amps) | 100 |
| Load Center Type | Main Breaker |
| Load Center Mounting Type | Surface |
| Load center width (in.) | 5.12 |
