Suitable for use only as service entrance equipment
Field installed Main Breaker, Surface mount, EUSERC Compliant
Side-by-side construction; for Overhead/Underground applications
- Fast and Secure Payments
- Nature-friendly materials, for a better planet.
- Service that stands out, online and always timely.
- Expertly Sourced, Quality Guaranteed

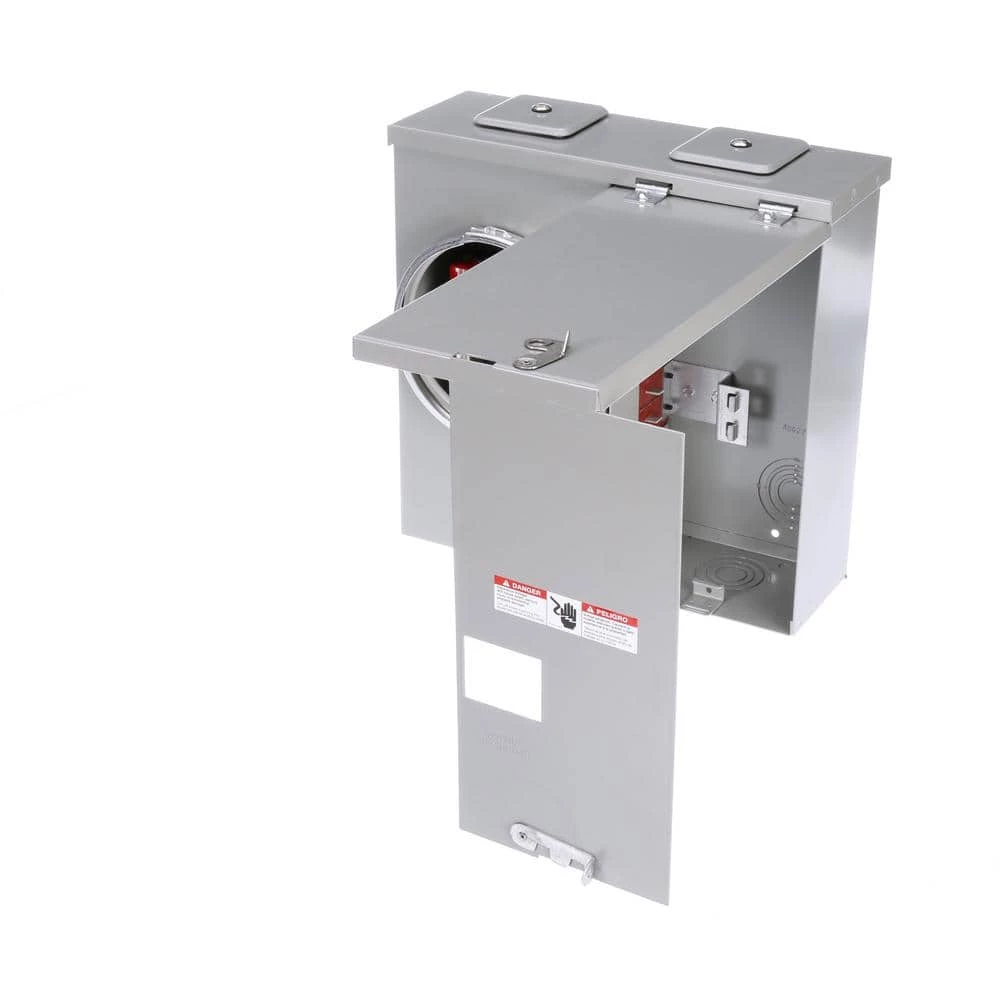

Siemens Meter Main and Meter Load Center Combinations provide a full range of Metering Products that are built for safety ease of installation and long term quality. A Meter Main is a device that provides a meter socket and a main breaker, a meter combination load center provides a socket, main breaker and load center interior. Siemens has also introduced a line of Solar Ready Meter Combination Load Centers. These combos feature a cost effective construction that is preferable in non-EUSERC areas.
- 22kAIC rated
- Pad locking provisions on all devices
- Contact local utility to confirm meter socket approval
- UL Listed
| Electrical Product Type | Load Center |
|---|---|
| Number of Spaces | 2 |
| Load center height (in.) | 6.00 |
| Load center depth (in.) | 14.80 |
| Manufacturer Warranty | 1 year |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 120/240 |
| Returnable | 90-Day |
| Product Weight (lb.) | 17.70 lb |
| Phase Type | 1 Phase |
| Number of Gangs | 0 |
| Indoor/Outdoor | Outdoor |
| Number of Circuits | 2 |
| NEMA Configuration Receptacle | No Receptacle |
| NEMA Configuration | NEMA 3R |
| Mounting Type | Bolt On |
| Meter Socket Type | Ring |
| Maximum Amperage (amps) | 125 |
| Load Center Type | Combination |
| Load Center Mounting Type | Flush |
| Load center width (in.) | 15.20 |
