Original price was: $142.03.$96.99Current price is: $96.99.
One piece Bus designed for use with circuit breakers only
Can accommodate 2 Pole GFCI breaker up to 50A
Ideal for outdoor use with Spas, Hot Tubs or Swimming Pools
- Fast and Secure Payments
- Nature-friendly materials, for a better planet.
- Service that stands out, online and always timely.
- Expertly Sourced, Quality Guaranteed

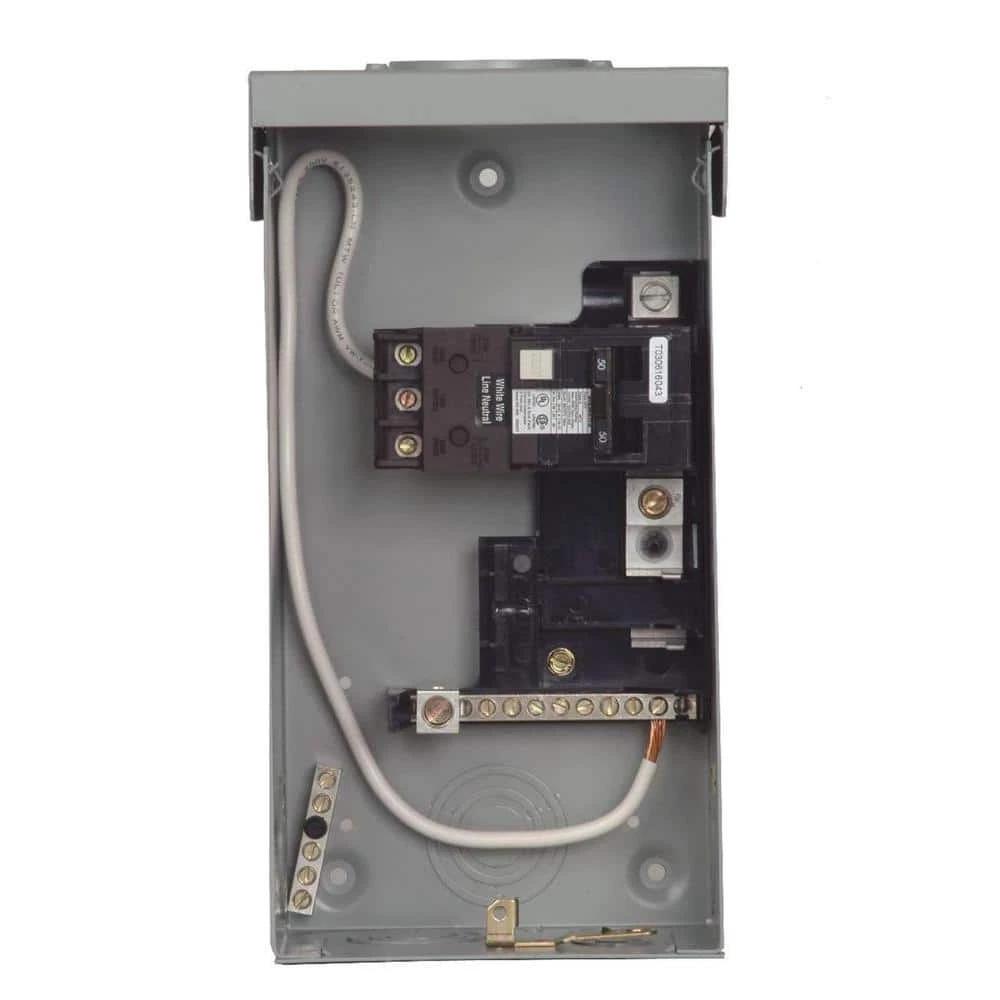

EQ type load centers with main lugs feature a combination trim box in one package. Spa Panels are ideal for outdoor applications requiring the use of ground fault protection, such as hot tubs. A factory installed 2-Pole GFCI breaker is provided, along with 2 extra circuits.
- Factory installed Siemens 2-pole 50 Amp GFCI circuit breaker (QF250P)
- 2 extra spaces for branch circuits
- Interiors offer removal in seconds
- Single phase
- 1 piece bus bar construction designed for use only with circuit breakers
- UL listed on 60/75C conductors
- Positive load side circuit breaker hook rails
- Factory installed 5 position ground bar
- Uses HS type hubs
- NEMA type 3R: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation, or internal icing
| Electrical Product Type | Spa Panel |
|---|---|
| Load Center Mounting Type | Surface |
| Load Center Type | Main Lug |
| Maximum Amperage (amps) | 125 |
| Mounting Type | Plug-On |
| Number of Circuits | 4 |
| Number of Spaces | 8 |
| Phase Type | 1 Phase |
| Product Weight (lb.) | 8.07 lb |
| Returnable | 90-Day |
| Voltage (volts) | 120/240 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | 10 Years |
| Load center depth (in.) | 13 |
| Load center height (in.) | 4.7 |
| Load center width (in.) | 7.08 |
