Original price was: $6.78.$4.07Current price is: $4.07.
Load Center Accessory
Ground Bar Kit
For use with Siemens ES & PL Load Centers
- Fast and Secure Payments
- Nature-friendly materials, for a better planet.
- Service that stands out, online and always timely.
- Expertly Sourced, Quality Guaranteed

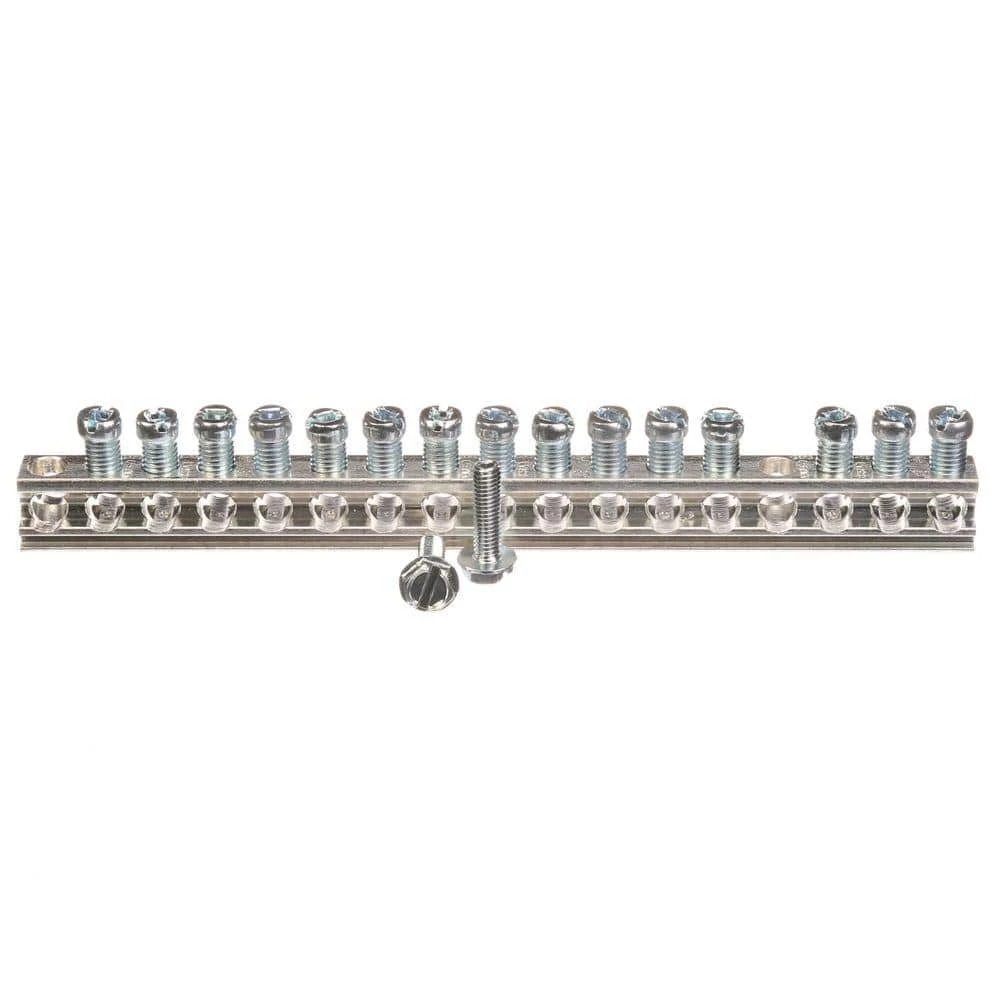

EC2GB series ground bars are intended for use in Siemens ES and PL series of load centers with a box height of 18, 21, 23, 24, 27, 30, 35 or 36 in. For the ES and PL lines of load centers this would include up to 200 Amp load centers that have (40) 1 in. circuit spaces or less. The ground bars can be mounted in one of 4 locations inside the load center: top right, top left, bottom right and bottom left. Up to 4 ground bars can be added to each load center.
- Ground bar for ES and PL load center series and has 15 positions
- Each terminal opening accepts number 14-4 CU/AL conductors
- EC2GB series ground bar
- Product is UL listed
| Electrical Product Type | Grounding Bar |
|---|---|
| Mounting Type | Bolt On |
| Product Weight (lb.) | .25 lb |
| Returnable | 90-Day |
| Certifications and Listings | CSA Listed,UL Listed |
| Manufacturer Warranty | 1 year |
| Product Depth (in.) | .50 in |
| Product Height (in.) | 8.50 in |
| Product Width (in.) | 4 in |
