Complete up-down 2 position pendant station that is ideal for hoist control, lift control such as with a boat or tailgate lift control station. The pendant station can be mounted to a wall. The laser-engraved up and down push-button switches of this 2 hole pendant station are equipped with Normally Open contact blocks. These contact blocks feature spring cage wire termination, for wiring and installation of this hoist and lift control station. The IP65, NEMA4X waterproof rating of this up and down control station is ensured with the M20 cable gland that is included with the housing. The switches are shrouded to prevent accidental actuation.
- Compact 2 button pendant push button station, up-down arrows and 2 normally open contacts

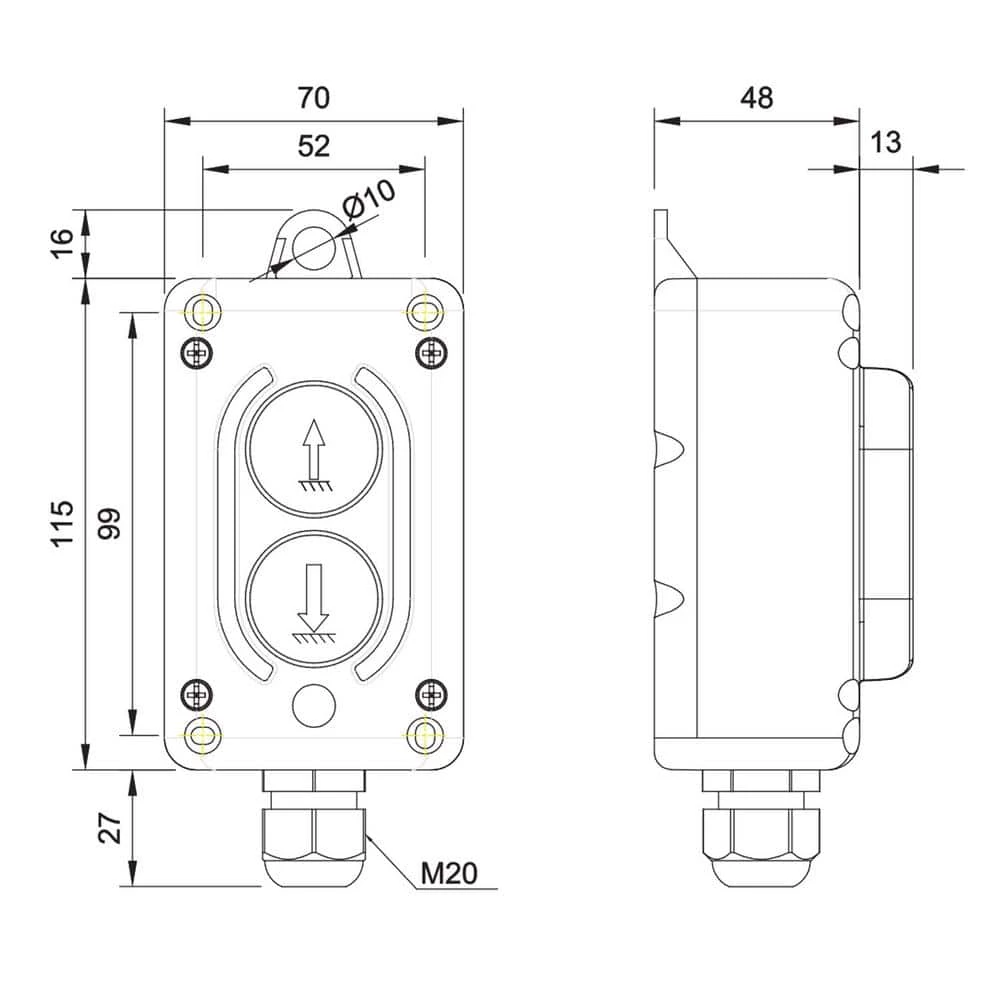

- Dimensions: 4.528 in. x 2.756 in. x 1.890 in. (115 mm x 70 mm x 48 mm)
- Laser engraved buttons
- Waterproof NEMA 4X rating
