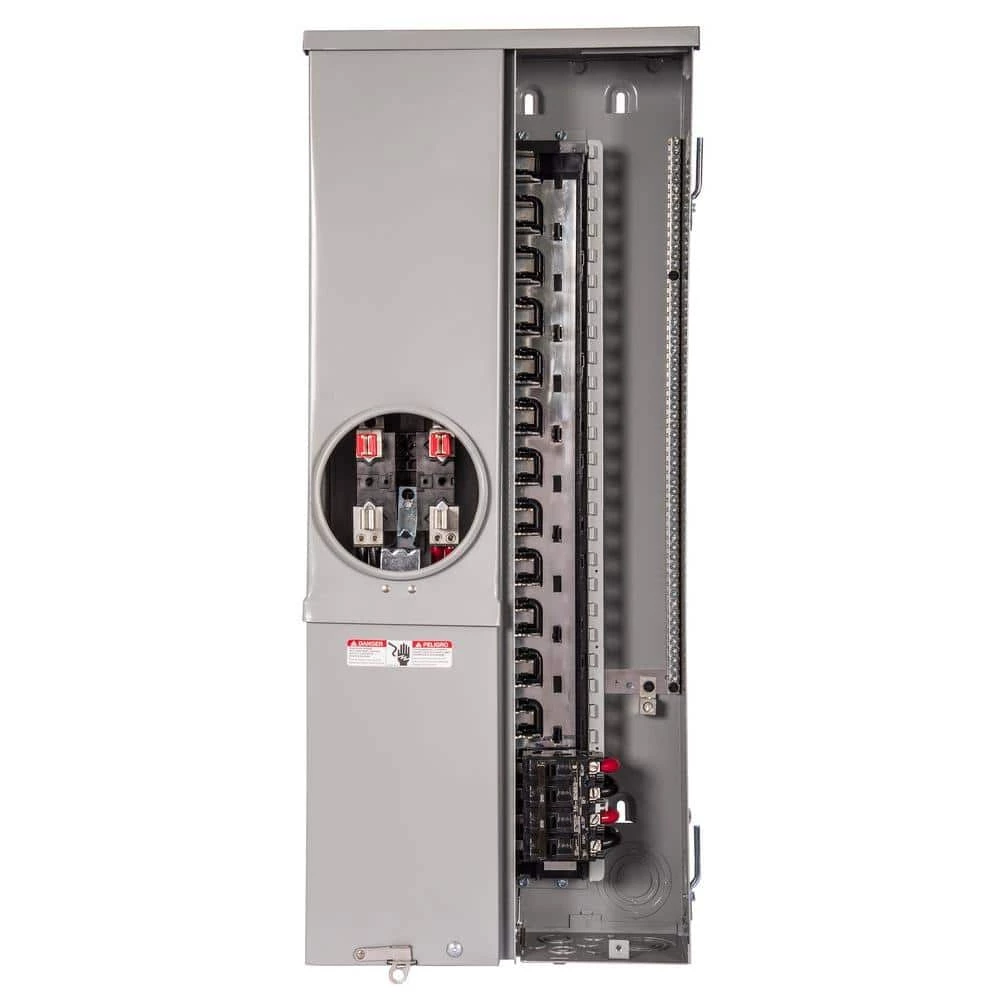

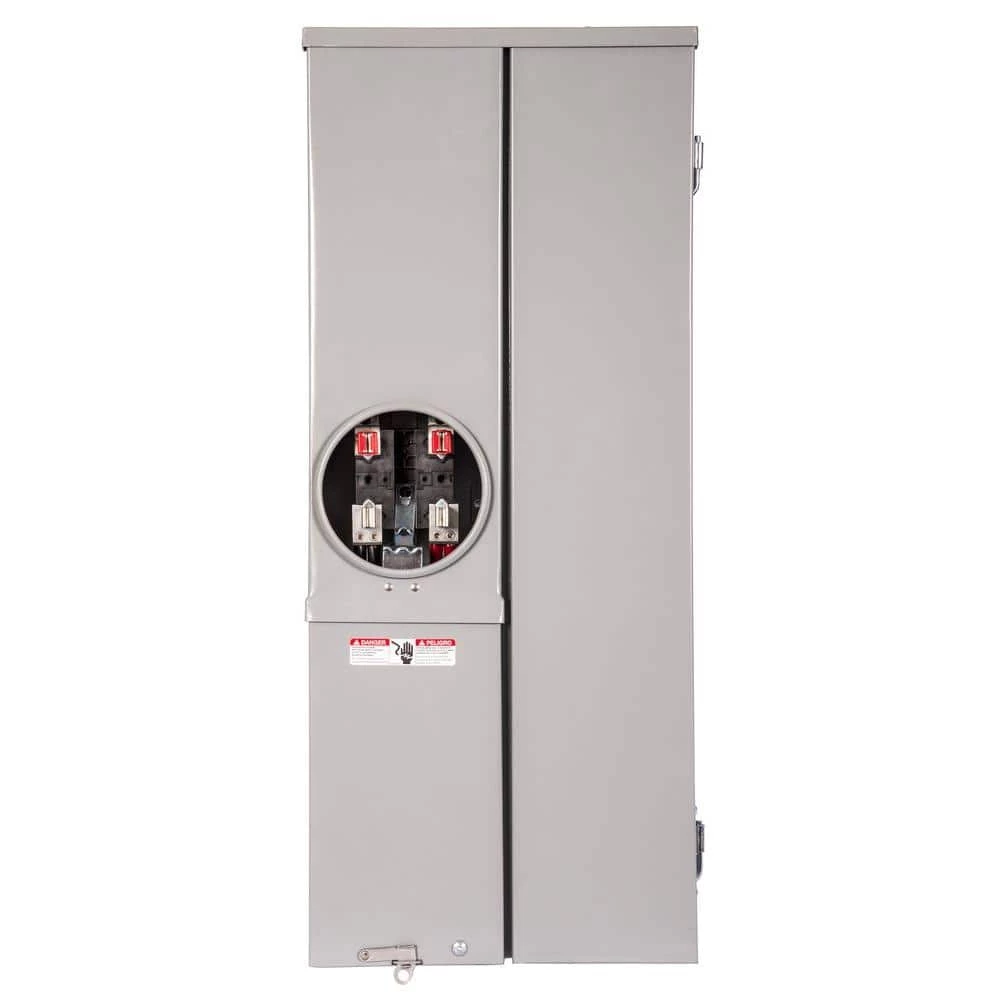

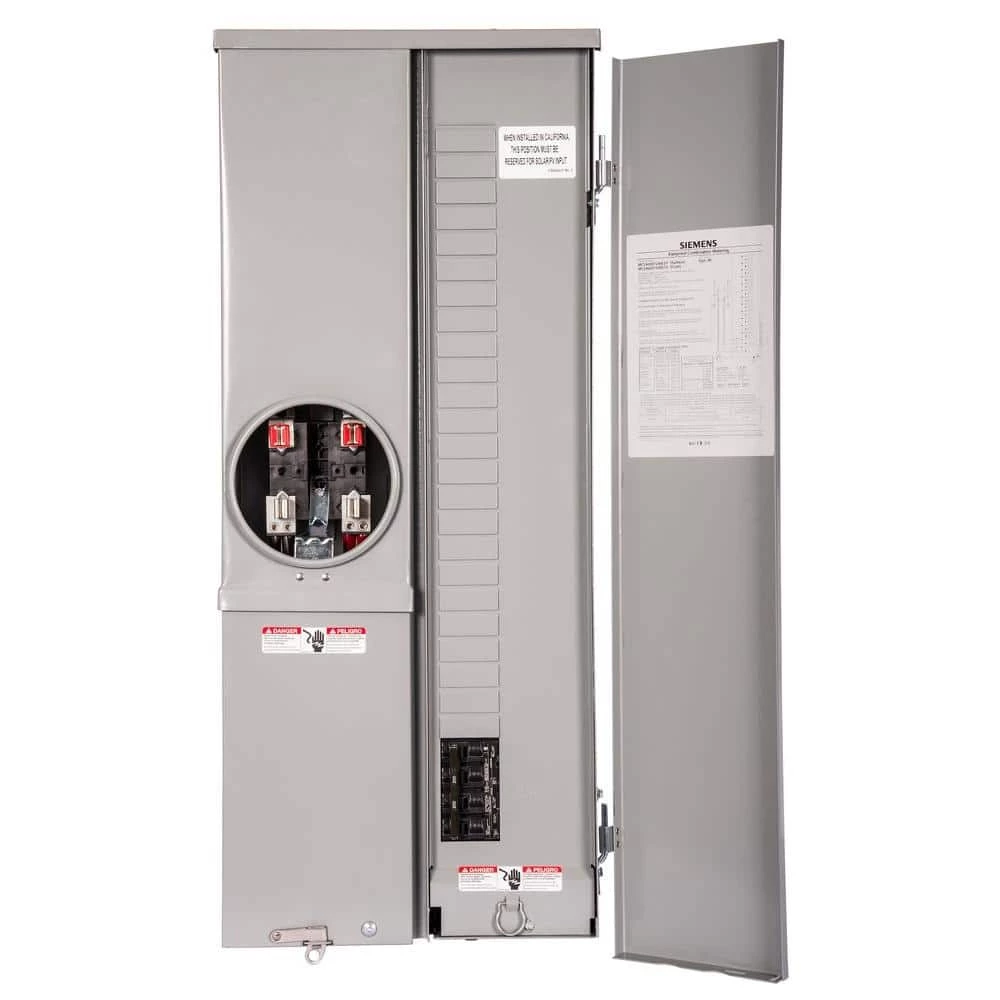

200 Amp 24-Space 42-Circuit Surface Mount Solar Ready Meter Load Center Combination by Siemens

The demand for residential solar metering solutions is rapidly growing. Siemens is committed to offering new and innovative products and solutions to support the needs of various residential alternative energy applications. We are proud to introduce this new 24 space, 42 circuit, side-by-side meter-load center combination device that can support a PV input up to 70 Amp back fed on the main. These new meter load-center combination devices represent an innovative and versatile addition to Siemens portfolio of high quality, Title 24 compliant, residential solar solutions.

• Features a 200 Amp main breaker and an enhanced 225 Amp rated bus offer flexible new solution for residential solar applications requiring a higher ampacity alternative energy input
• With the featured 225 Amp enhanced bus rating and 200 Amp main breaker, our customers are now able to utilize higher amp solar inputs without debating

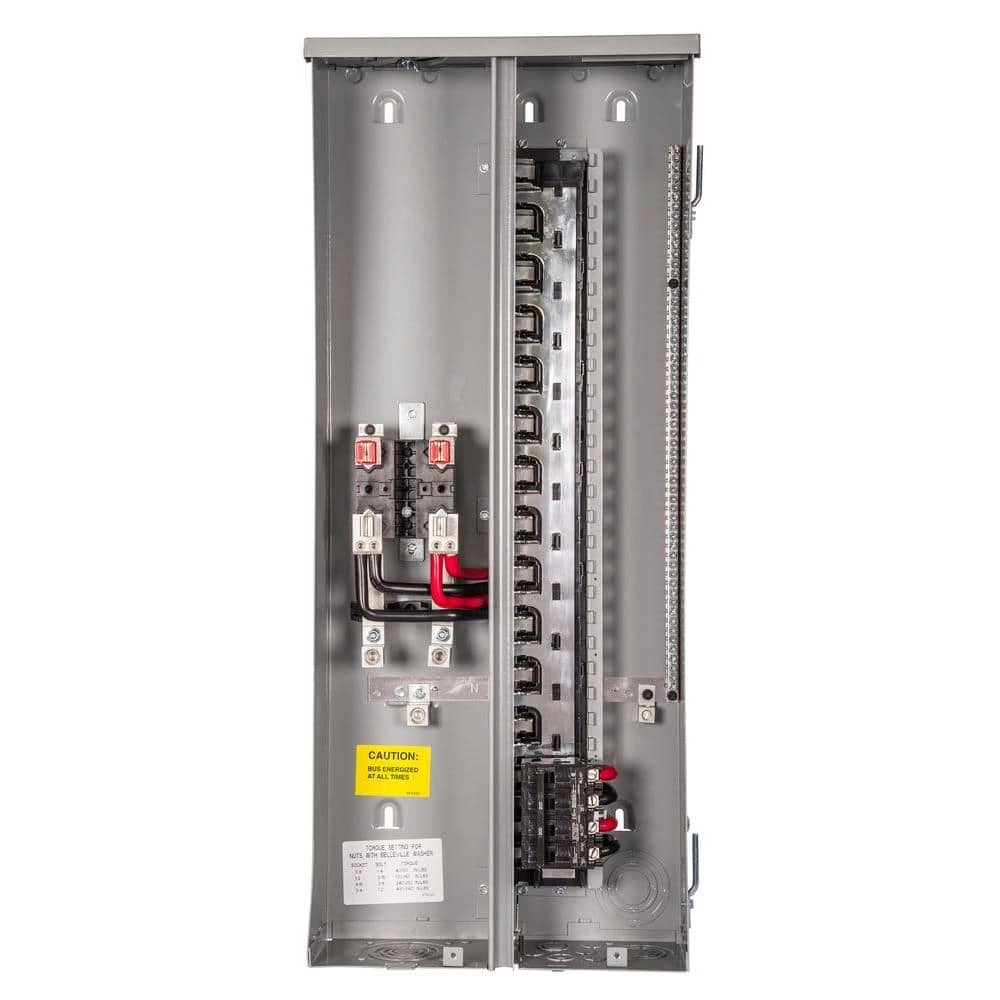

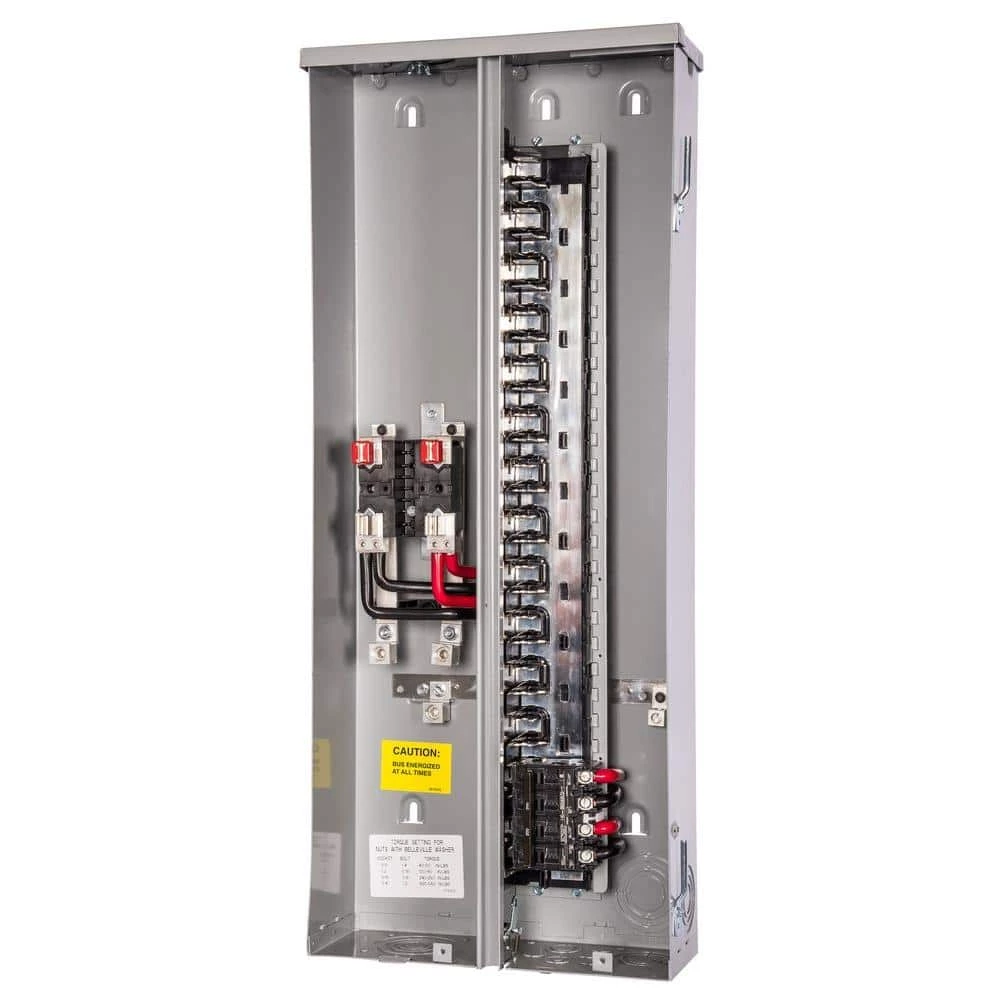

• Raised base pan for ease of wiring

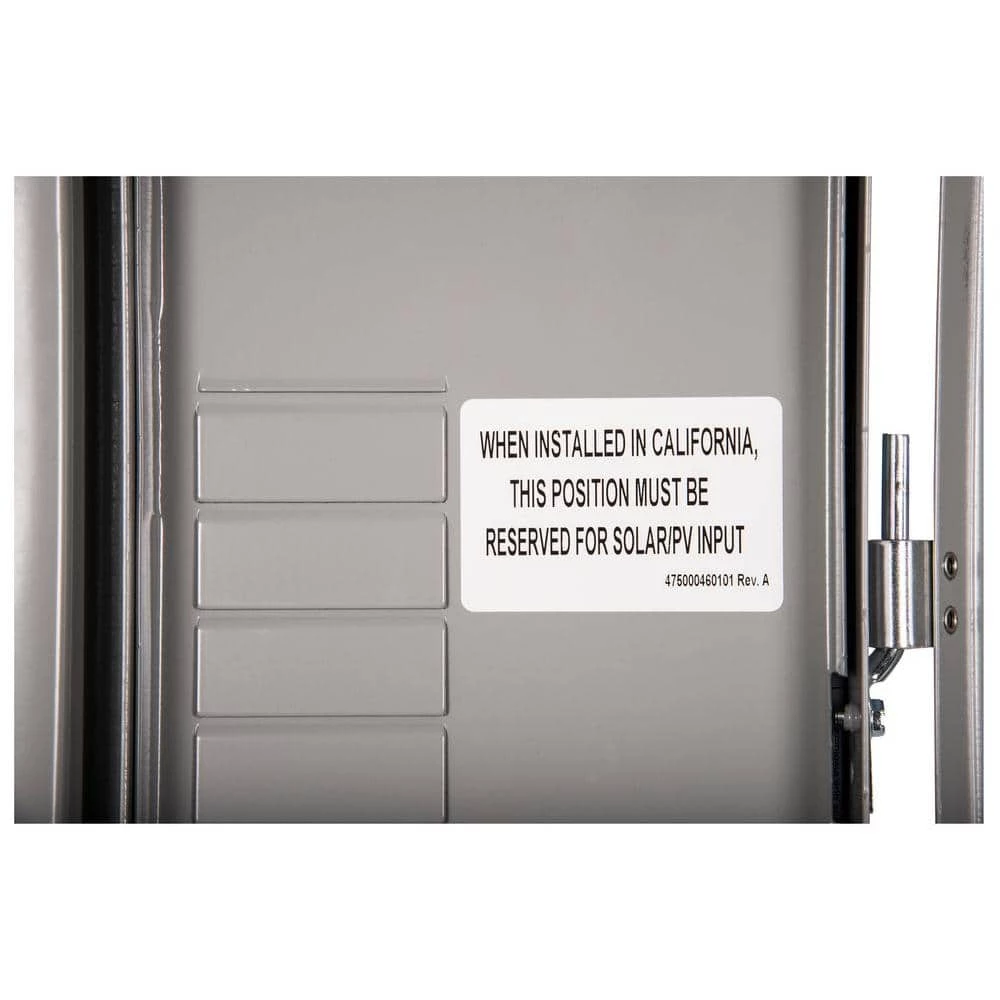

• Top two spaces reserved and marked for up to 70 Amp back fed solar input
• Raised neutral bar featuring insta-wire design for ease of install

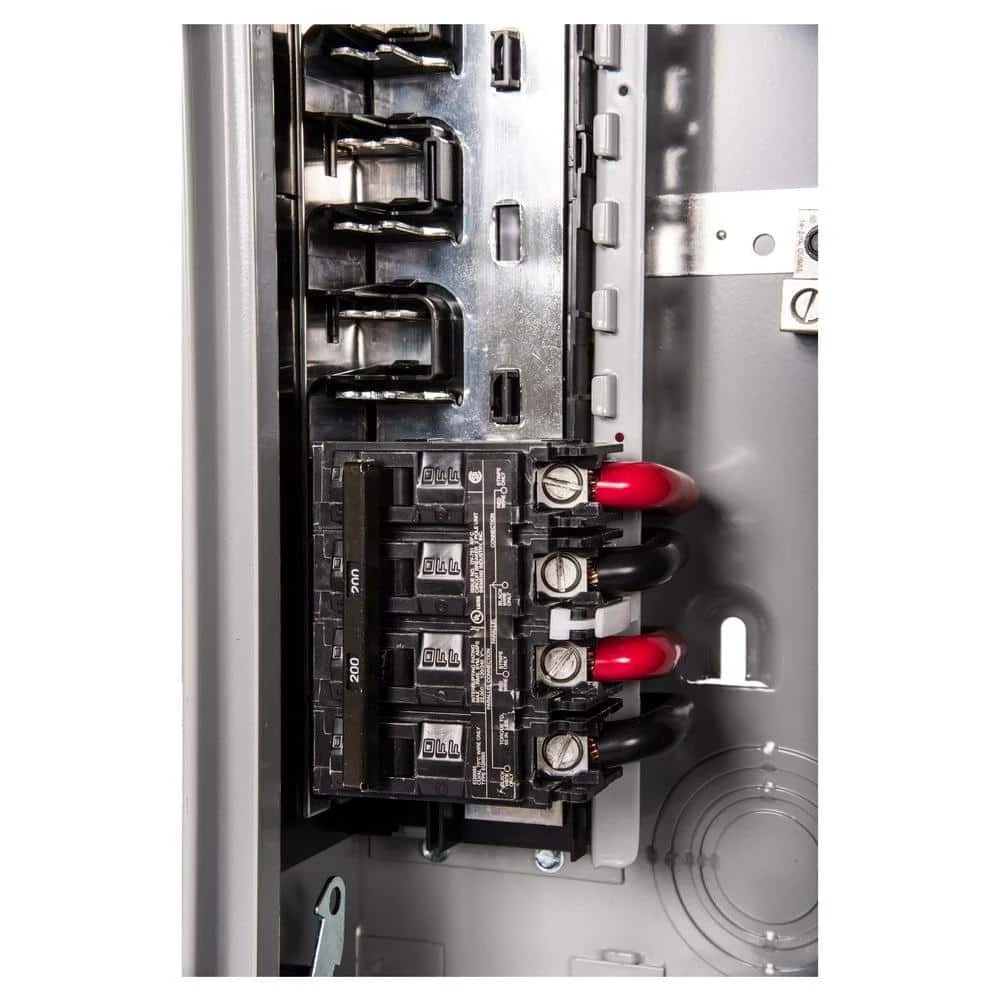

• 200 Amp main breakers located at the opposite end of the bus from the reserved solar input spaces
• 225 Amp bus rating
• Overhead or underground feed
• Surface Mounted
• Contact local utility to confirm meter socket approval
