Original price was: $129.00.$94.17Current price is: $94.17.
For use in Siemens panels that accept Type QN Main Breakers
10 kA Interrupting Rating
Accepts #1-300kcmil Cu-Al Wire
- Fast and Secure Payments
- Nature-friendly materials, for a better planet.
- Service that stands out, online and always timely.
- Expertly Sourced, Quality Guaranteed

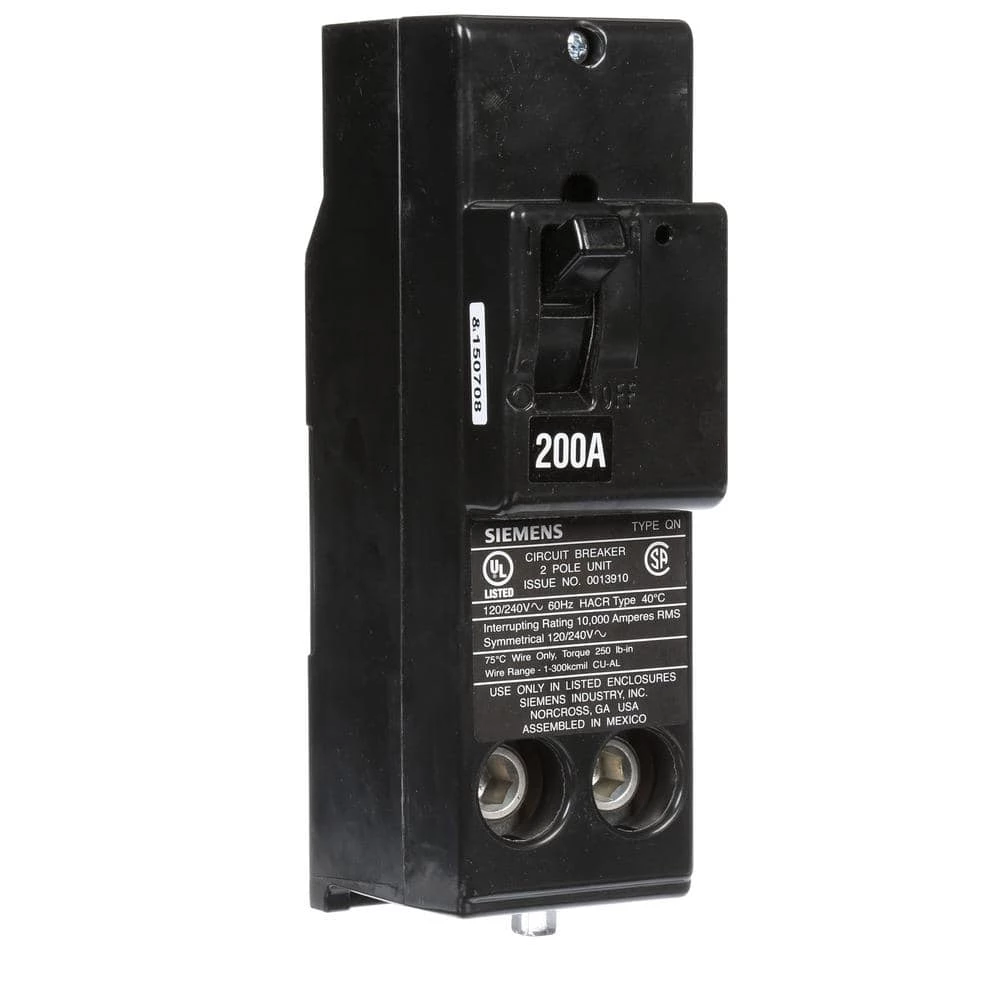

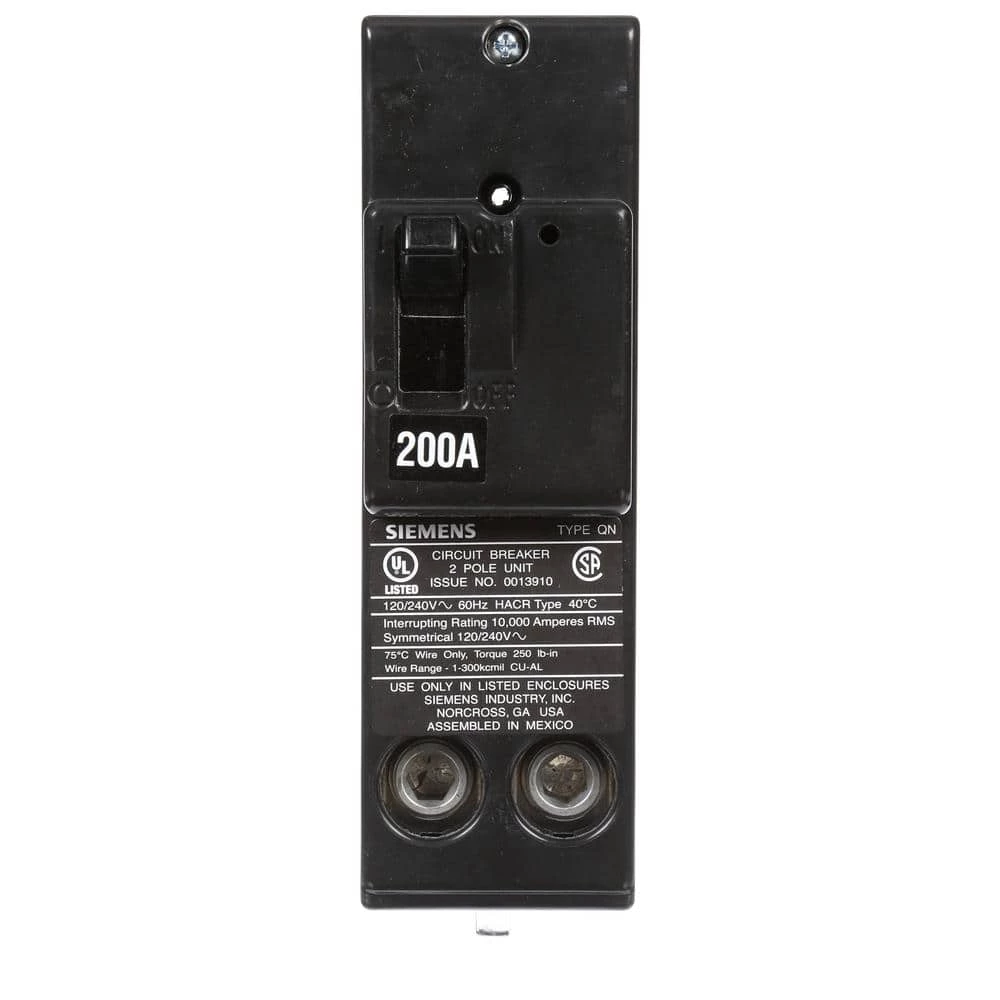

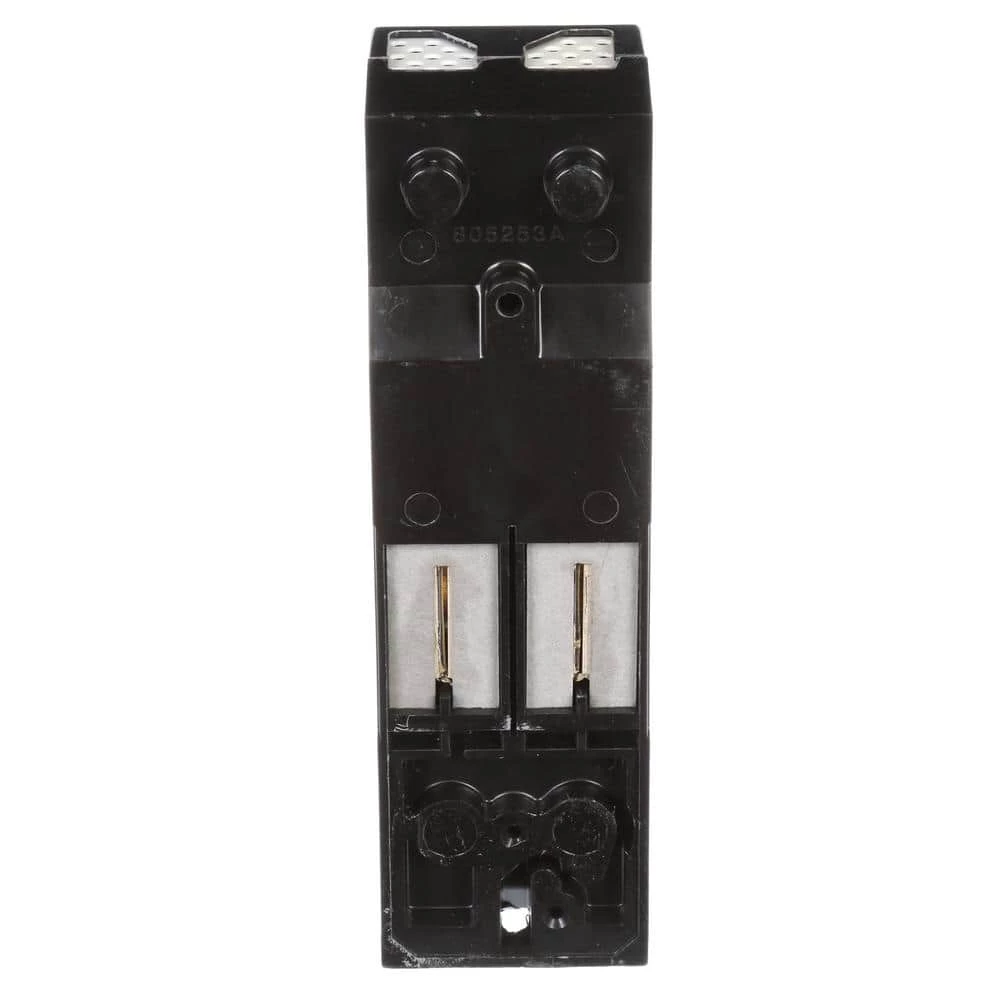

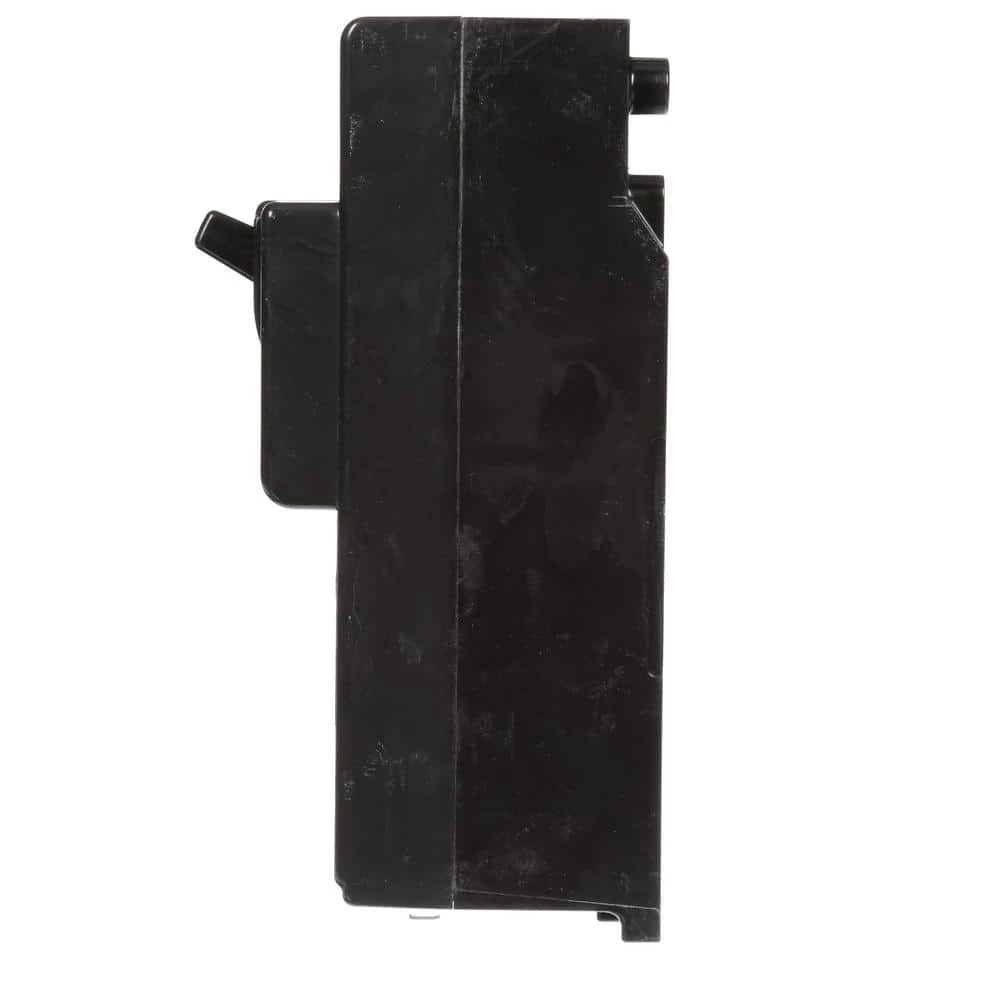

The Siemens 200 Amp Double-Pole Circuit Breaker provides a 120/240 VAC, 10,000 AIC rating for placement in Siemens brand circuit-breaker enclosures and metering installations. This circuit breaker offers a #1-300 kcmil wire range compatible with copper and aluminum conductors. The plug-in design of this breaker allows for quick and easy installation.
- Designed for Siemens circuit-breaker enclosures and metering applications
- #1-300 kcmil wire range compatible with copper and aluminum conductors
- 200 Amp 120/240 VAC, 10,000 AIC rating
- Meets UL, CSA and ANSI safety requirements
- Wire range #1-300 kcmil Cu/Al shunt trip available, use 00S01 suffix for ordering
- Padlocking device available, use catalog number QLN3
| Breaker Type | Double Pole |
|---|---|
| Electrical Product Type | Breaker |
| Interruption Type | Standard Trip |
| Maximum Amperage (amps) | 200 |
| Mounting Type | Bolt On |
| Number of Poles | 2 |
| Pack Size | 1 |
| Power Distribution Features | No Additional Features |
| Product Weight (lb.) | 2 lb |
| Returnable | 90-Day |
| Voltage (volts) | 240 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | LIFETIME |
| Product Depth (in.) | 3 in |
| Product Height (in.) | 6.625 in |
| Product Width (in.) | 2 in |
