Original price was: $151.60.$99.99Current price is: $99.99.
Load Center ready
Common Trip unit
For use when breaker is mounted vertically
- Fast and Secure Payments
- Nature-friendly materials, for a better planet.
- Service that stands out, online and always timely.
- Expertly Sourced, Quality Guaranteed

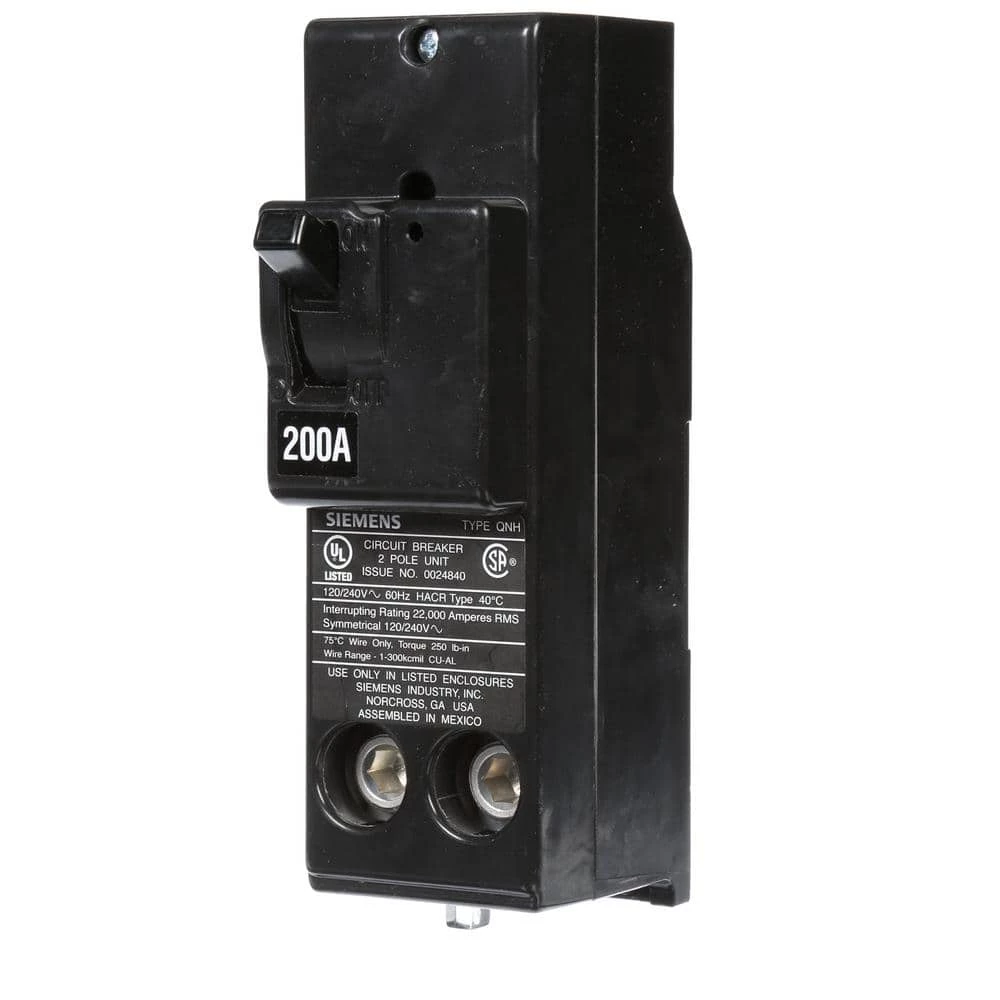

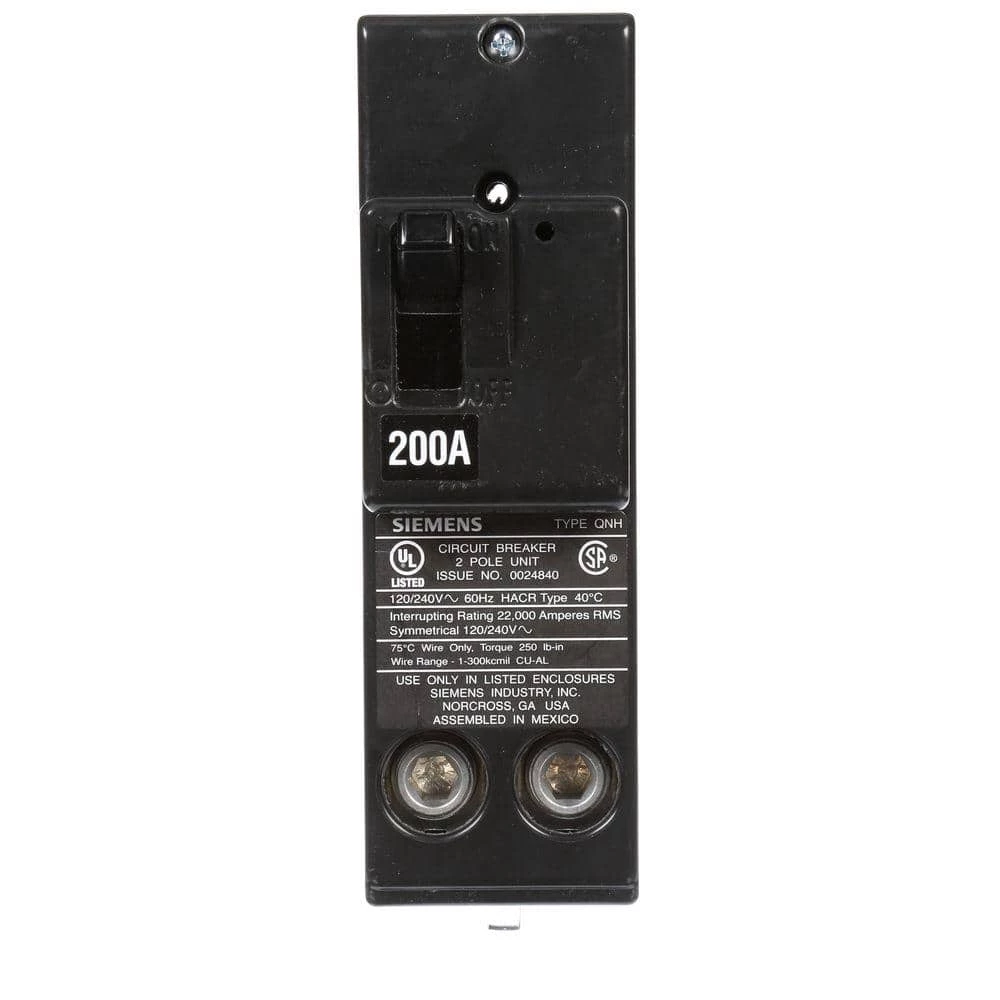

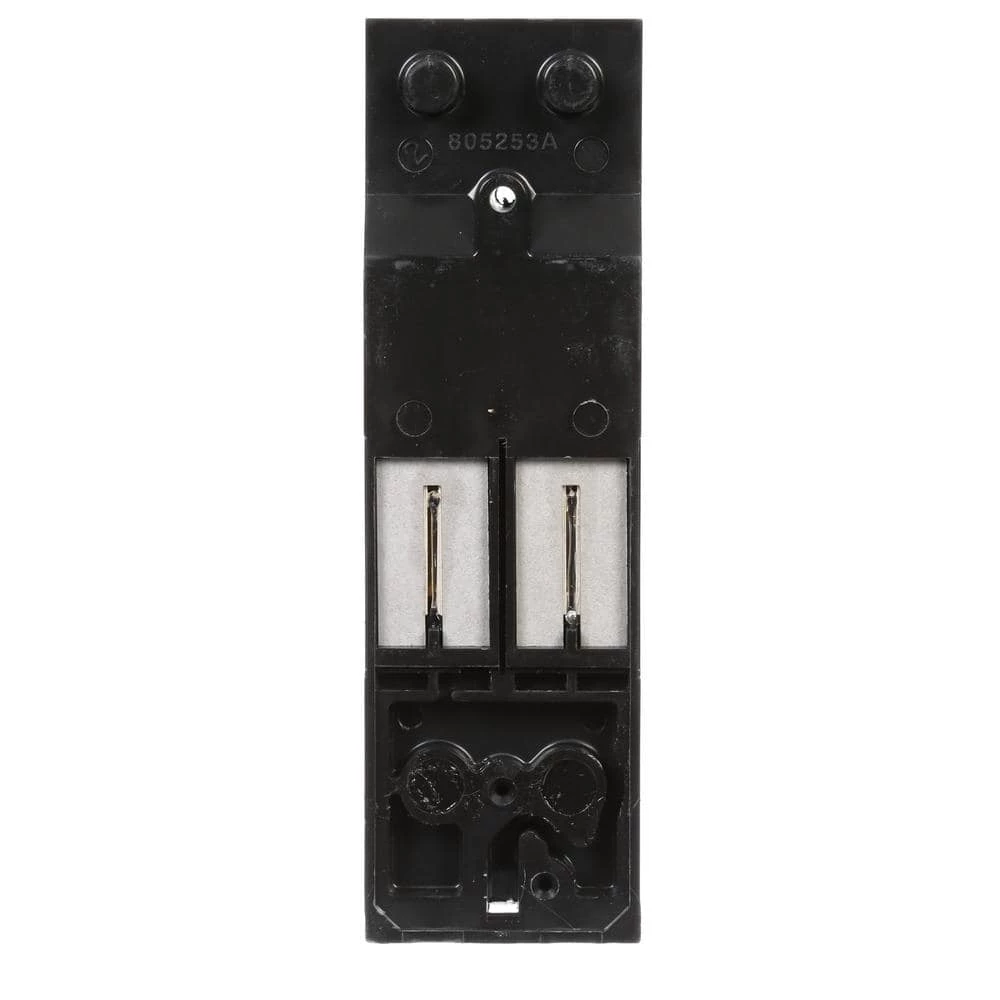

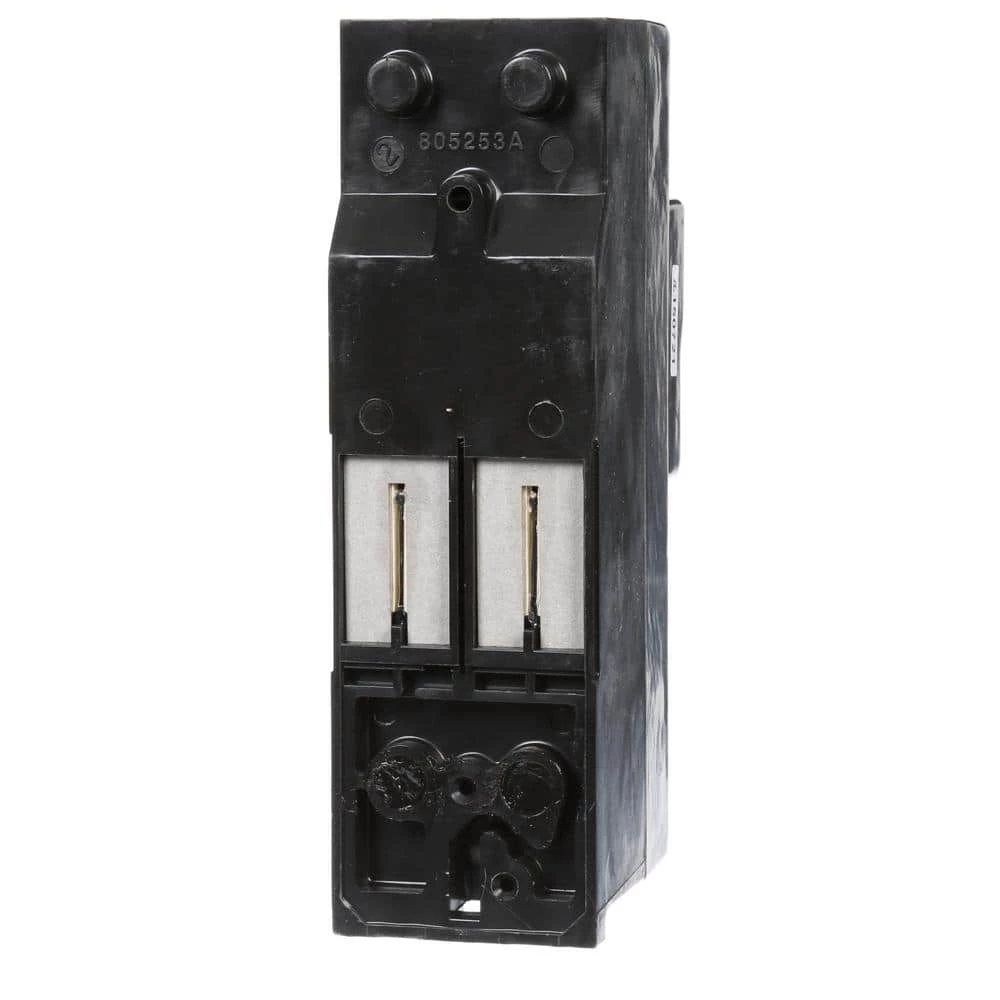

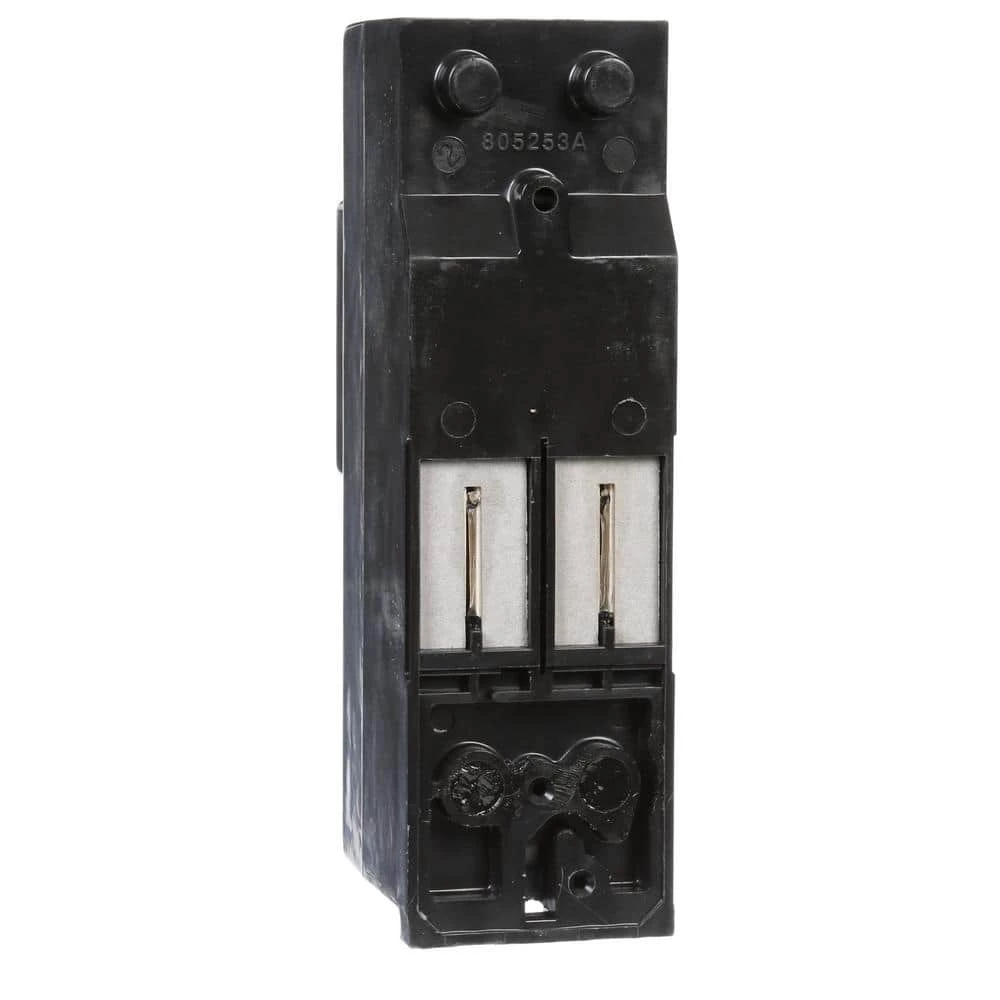

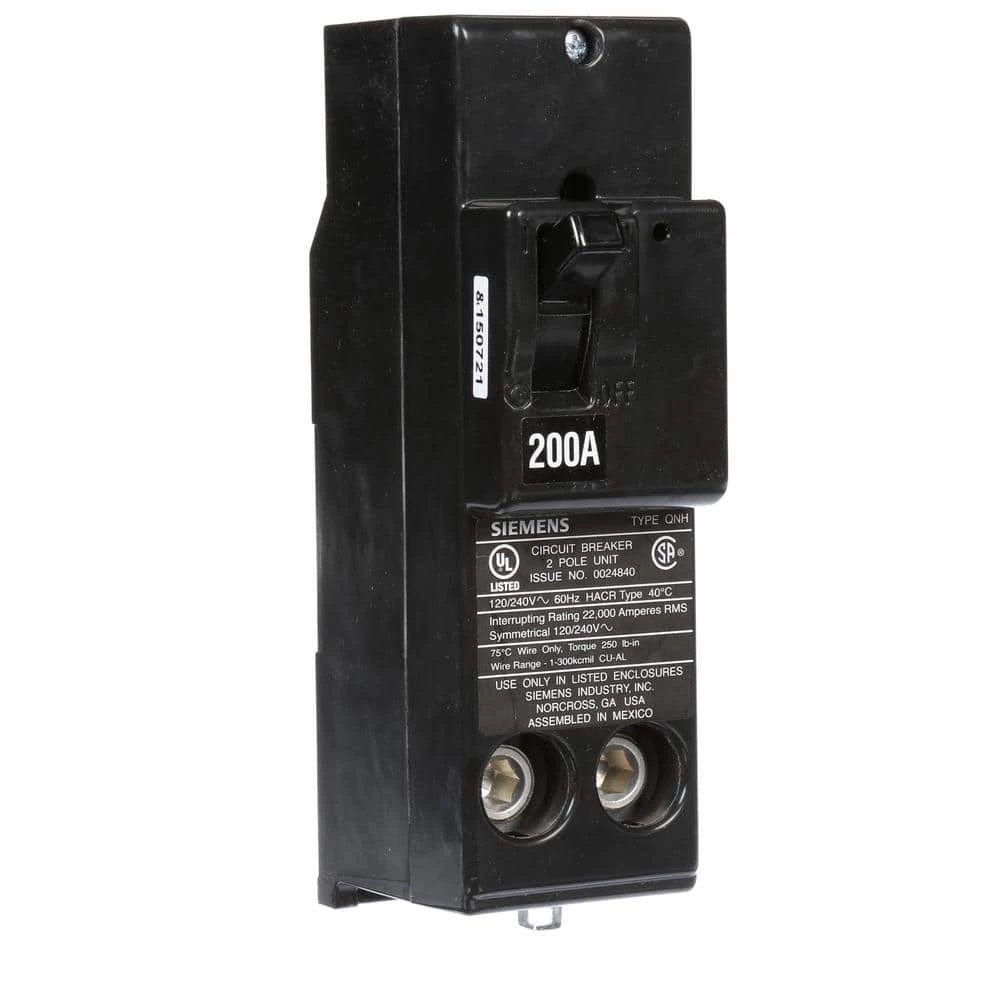

The Siemens 200 Amp Double-Pole Circuit Breaker offers a #4 – 300 kcmil wire range compatible with either copper or aluminum conductors. This circuit breaker requires 2 adjacent spaces and 2 opposite spaces to install in a Siemens brand enclosure. This breaker features a 120/240 VAC capacity and an interrupting rating of 22,000 Amp.
- Plug-on branch circuit breaker designed for Siemens load centers
- Installations requires 4 available panel spaces, 2 adjacent and 2 opposite
- 4 – 300 kcmil copper or aluminum wire range
- 120/240 VAC, interrupting rating of 22,000 Amp
- Meets UL, CSA and ANSI safety requirements
- Shunt trip available, use 00S01 suffix for ordering pad locking device available, use catalog number QLN3
| Breaker Type | Double Pole |
|---|---|
| Electrical Product Type | Breaker |
| Interruption Type | Standard Trip |
| Maximum Amperage (amps) | 200 |
| Mounting Type | Bolt On |
| Number of Poles | 2 |
| Pack Size | 1 |
| Power Distribution Features | No Additional Features |
| Product Weight (lb.) | 1.6 lb |
| Returnable | 90-Day |
| Voltage (volts) | 240 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | LIFETIME |
| Product Depth (in.) | 7.9 in |
| Product Height (in.) | 3.5 in |
| Product Width (in.) | 4.0 in |
