Original price was: $45.70.$27.42Current price is: $27.42.
IP65 thermoplastic closure for water and heat resistance
Ergonomic piston design offers a good grip
Shock and hazard-proof wire connections ensure safety
- Fast and Secure Payments
- Nature-friendly materials, for a better planet.
- Service that stands out, online and always timely.
- Expertly Sourced, Quality Guaranteed

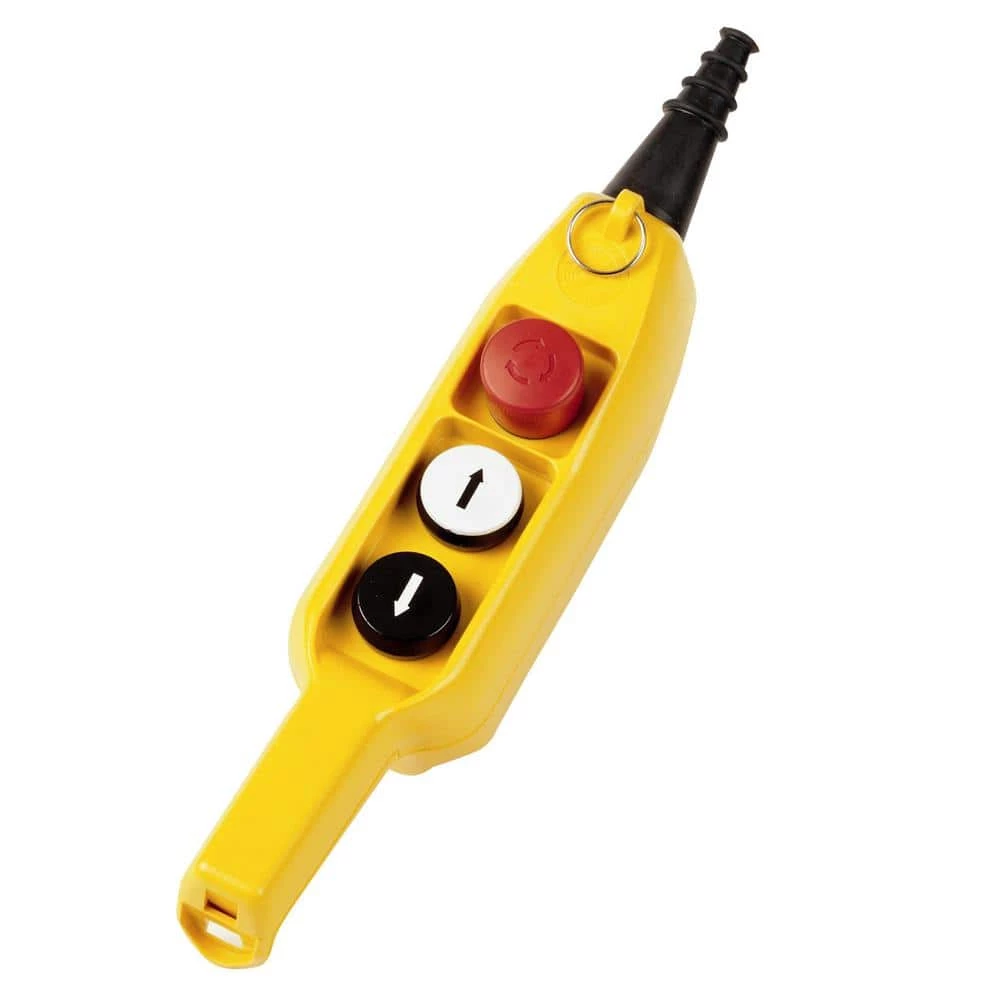

Pendant station switch with 3 buttons in a pistol grip housing. This hoist pendant station features an emergency stop switch with a NC contact and engraved up and down push buttons with NO (normally open) contacts. The double insulated thermoplastic housing that is shock proof and heat resistant provides IP65, NEMA4X protection for this 3 button pendant station. The combination of laser engraved push buttons and ergonomic pistol grip make this hoist push button control station completely user friendly. The 2 normally open and 1-normally closed contacts carry a 16 Amp rating and are easy to wire with the screw clamp terminations.
- 3-button pendant station
- Compact design with ergonomic pistol grip
- Waterproof IP65, NEMA 4X
- Wire size: 18 AWG – 14 AWG
| Commercial/Residential | Commercial,Residential |
|---|---|
| Component Type | Pendant Station |
| Returnable | 90-Day |
