Original price was: $102.42.$73.74Current price is: $73.74.
Includes a 120-Volt Shunt Trip
For use in Siemens 3 Phase Load Centers
Accepts #8-#6 AWG Cu or #8-#4 AWG Al Wire
- Fast and Secure Payments
- Nature-friendly materials, for a better planet.
- Service that stands out, online and always timely.
- Expertly Sourced, Quality Guaranteed

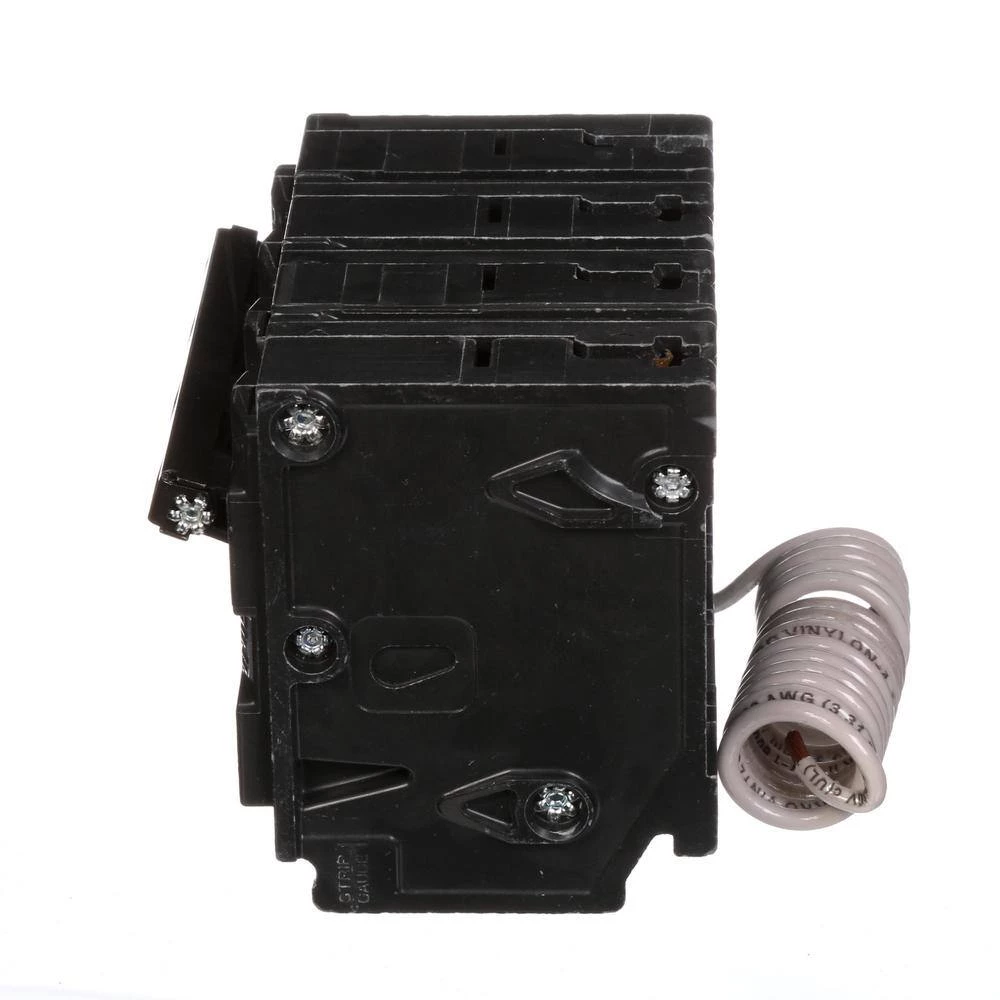

Shunt trip breakers operate with the same functionality of a standard type breaker providing over current and short circuit protection, as well as switching capability. The Shunt trip breakers provide an additional function in that it can be tripped remotely through the use of a built in magnetic coil that can be energized to trip the breaker. Each Shunt trip breaker will have an additional 1 in. pole attached to it to house the magnetic coil. The additional pole does not plug onto and is not energized by the bus bar.
- Type QP
- 10K AIC series rating
- 120-Volt shunt trip allows for externally activated tripping
- 120/240-Volt
- Takes up the space of 4 poles
- UL listed
- Designed for residential/commercial applications
- Time saving insta-wire feature
| Breaker Type | Triple Pole |
|---|---|
| Electrical Product Type | Breaker |
| Interruption Type | Standard Trip |
| Maximum Amperage (amps) | 50 |
| Mounting Type | Bolt On |
| Number of Poles | 3 |
| Pack Size | 1 |
| Power Distribution Features | No Additional Features |
| Product Weight (lb.) | 1.102 lb |
| Returnable | 90-Day |
| Voltage (volts) | 240 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Lifetime |
| Product Depth (in.) | 4 in |
| Product Height (in.) | 4 in |
| Product Width (in.) | 5 in |
