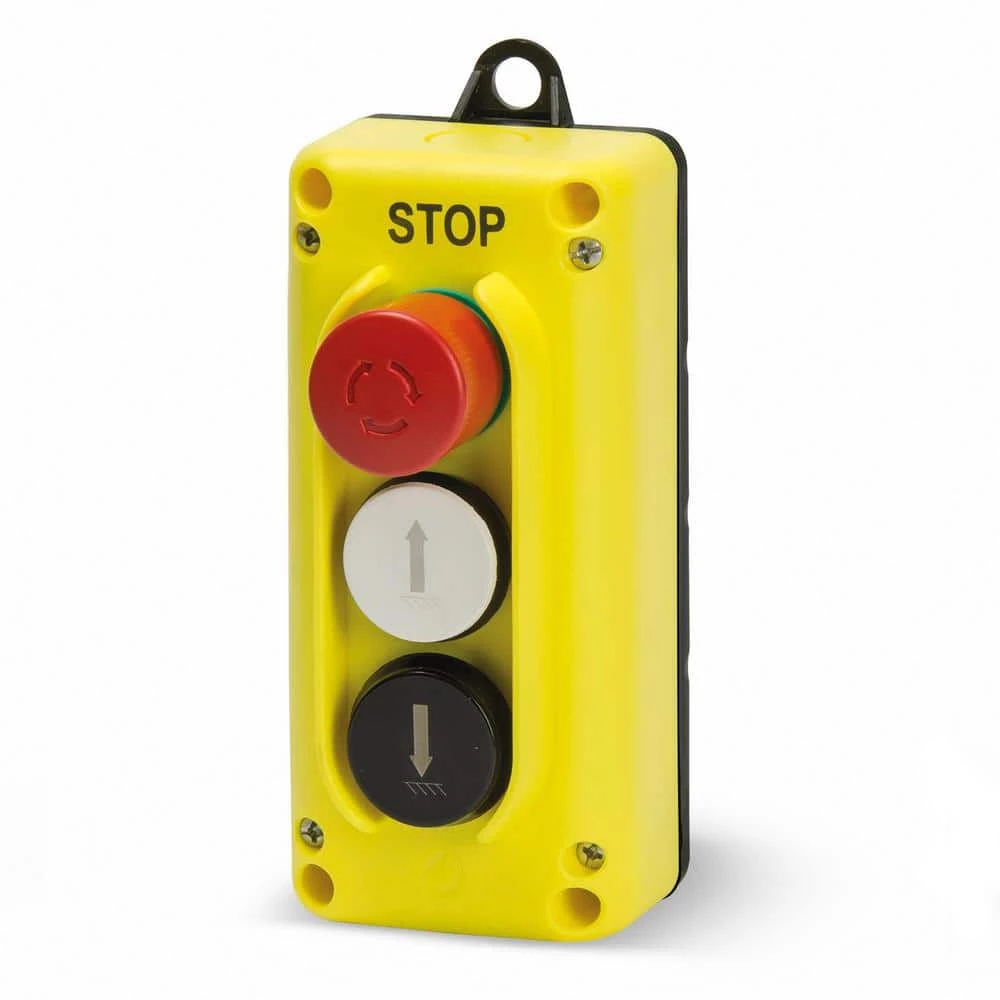

Compact 3-Button Pendant Push Button Station UP-Down Buttons 1 Emergency Stop by ASI

Compact 3 Button Pendant Push Button Station, UP-Down Buttons, 1 Emergency Stop, 1NC/2NO Contacts 3 position compact pendant control station for hoist control and lift control pendant applications. The TLP3. B includes a twist to release emergency stop button and up and down push button switches. The e-stop push button is equipped with a NC contact and the up-down switches are with NO contact blocks. The laser engraved push button switches and emergency stop switch are protected with a shrouded cover to prevent accidental operation. Included with this IP65, NEMA4X rated housing is a M20 cable gland to ensure a watertight installation. Wiring to the contact blocks of the TLP3. B 3 hole pendant station is simplified by the spring clamp wire terminations.

• Compact pendant station for hoist and lift platform control applications
• Spring clamp wire termination for easy wiring

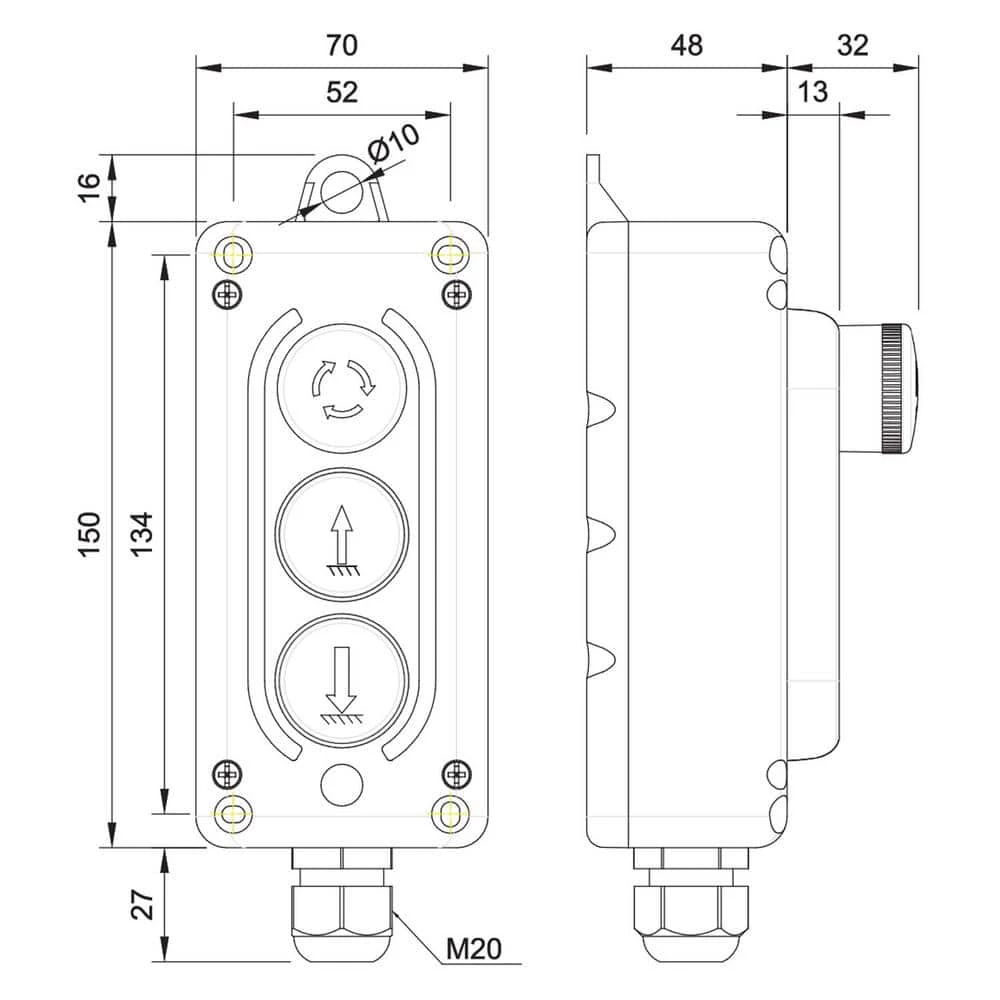

• Dimensions: 150 x 70 x 48 mm (5.906 x 2.756 x 1.890 in. )
• Shock proof and heat resistant
