Original price was: $29.99.$21.89Current price is: $21.89.
Aluminum Bus
Solid Bus Bar construction
Ideal for subfeed applications
- Fast and Secure Payments
- Nature-friendly materials, for a better planet.
- Service that stands out, online and always timely.
- Expertly Sourced, Quality Guaranteed

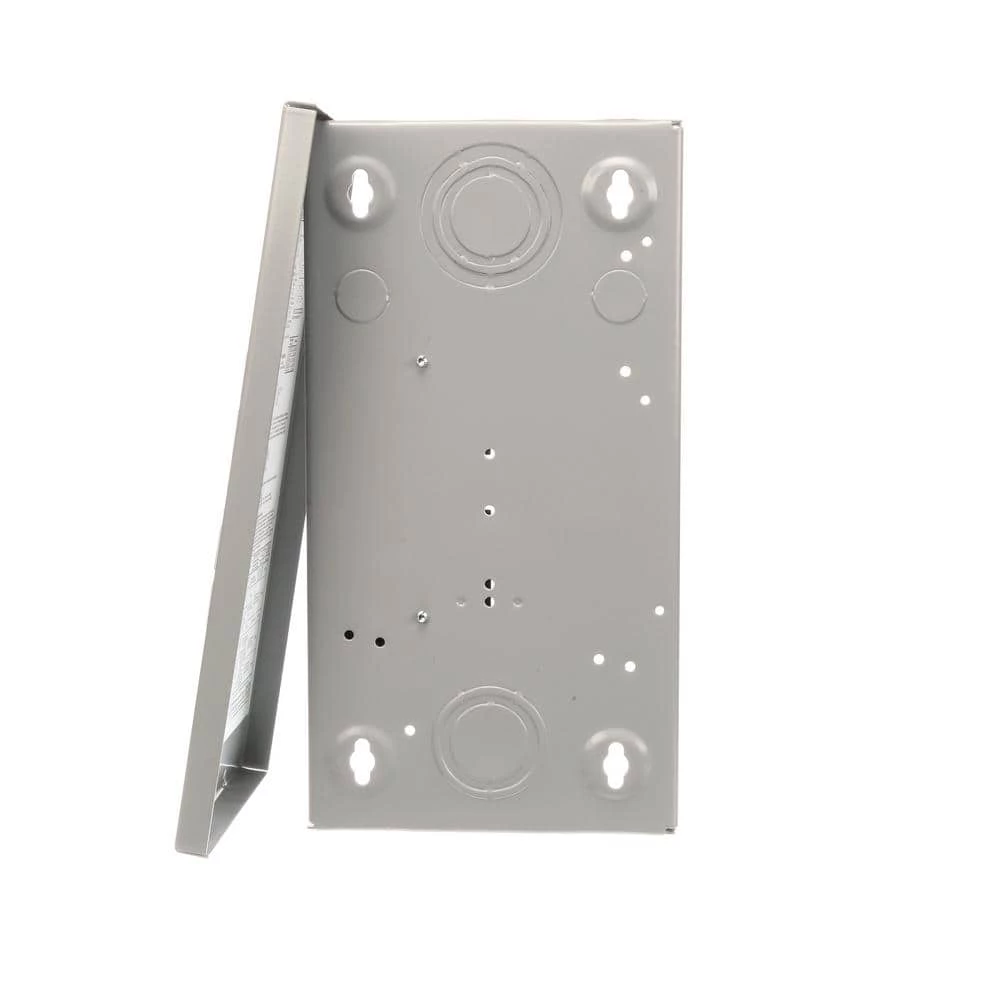

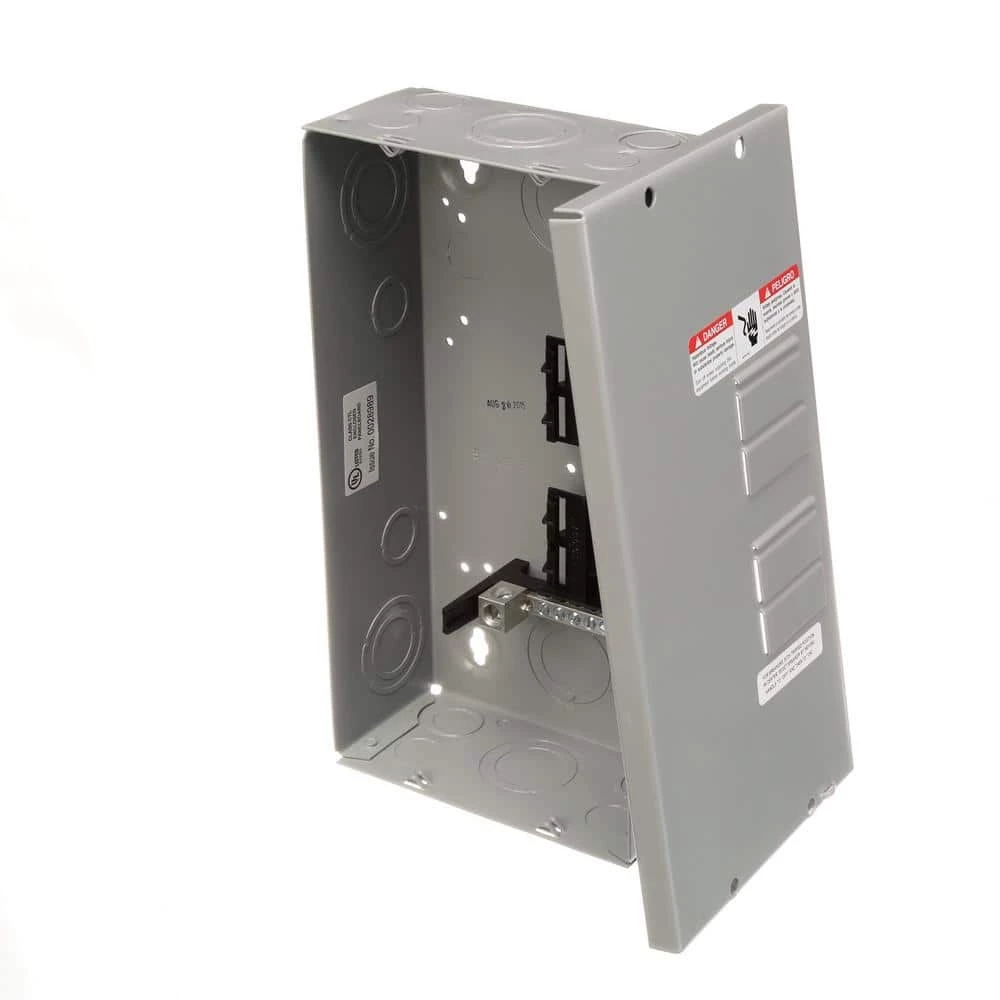

The Siemens EQ 125 Amp 4-Space 8-Circuit Main Lug Indoor Load Center is single phase, 3 wire and rated for a maximum of 240-Volt and has a 100,000 Air. The center is NEMA Type 1 rated for indoor use. This product has a G90 hot-dipped, galvanized-carbon-steel enclosure that helps provide corrosion protection and an additional powder coating of polyester paint, using an electrostatic process, that enhances the corrosion protection and gives a great-looking finish, free of drips and runs.
- For use as a main lug load center
- NEMA type 1 rated for indoor use
- G90 hot-dipped, galvanized-carbon-steel enclosure helps provide corrosion protection
- Powder coating of polyester paint using electrostatic process enhances corrosion protection and gives a great-looking finish, free of drips and runs
- 1-piece aluminum buss bar is designed for use only with circuit breakers (not included)
- Single phase
- 3-wire
- 120/240 VAC
- 100,000 AIR
- ANSI certified and UL listed
- Surface mount
- Combination trim box in 1-package
- Positive load-side circuit-breaker hook rails
- Will not accommodate a double-pole GFCI or a circuit breaker with a shunt trip
- 100 Amp main breaker maximum (not included)
| Electrical Product Type | Main Lug/ Main Lug Kit |
|---|---|
| Phase Type | 1 Phase |
| Load center height (in.) | 13.50 |
| Load center depth (in.) | 4 |
| Manufacturer Warranty | 1 year |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 120/240 |
| Returnable | 90-Day |
| Product Weight (lb.) | 6 lb |
| Number of Spaces | 4 |
| Indoor/Outdoor | Indoor |
| Number of Circuits | 8 |
| NEMA Configuration Receptacle | No Receptacle |
| NEMA Configuration | NEMA 1 |
| Mounting Type | Bolt On |
| Maximum Amperage (amps) | 125 |
| Load Center Type | Main Lug |
| Load Center Mounting Type | Surface |
| Load center width (in.) | 7.25 |
