Original price was: $57.11.$38.26Current price is: $38.26.
Aluminum Bus
Solid Bus Bar construction
Ideal for subfeed applications
- Fast and Secure Payments
- Nature-friendly materials, for a better planet.
- Service that stands out, online and always timely.
- Expertly Sourced, Quality Guaranteed

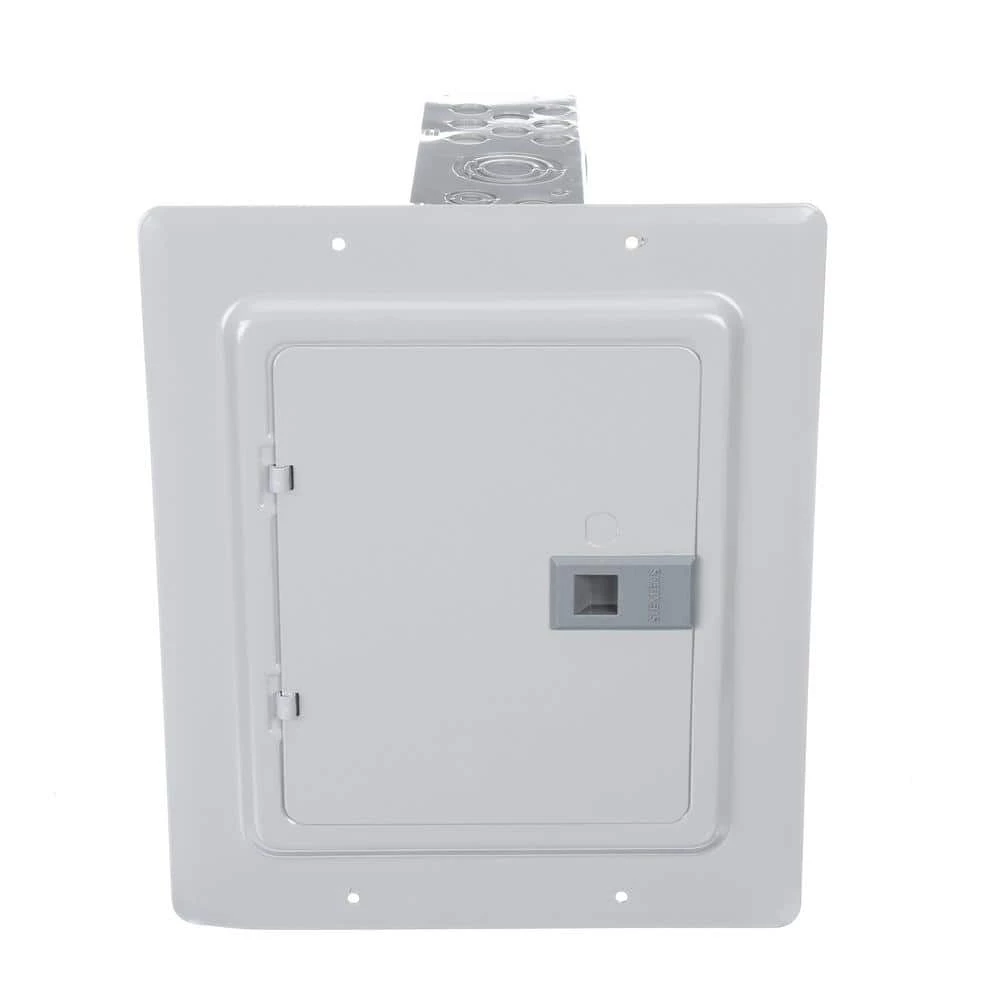

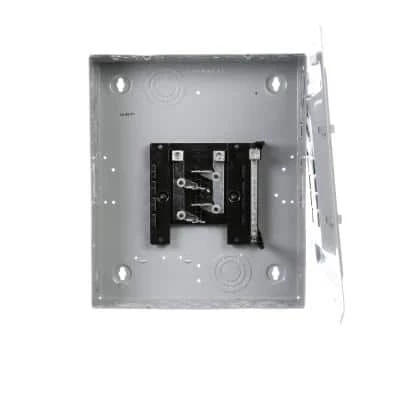

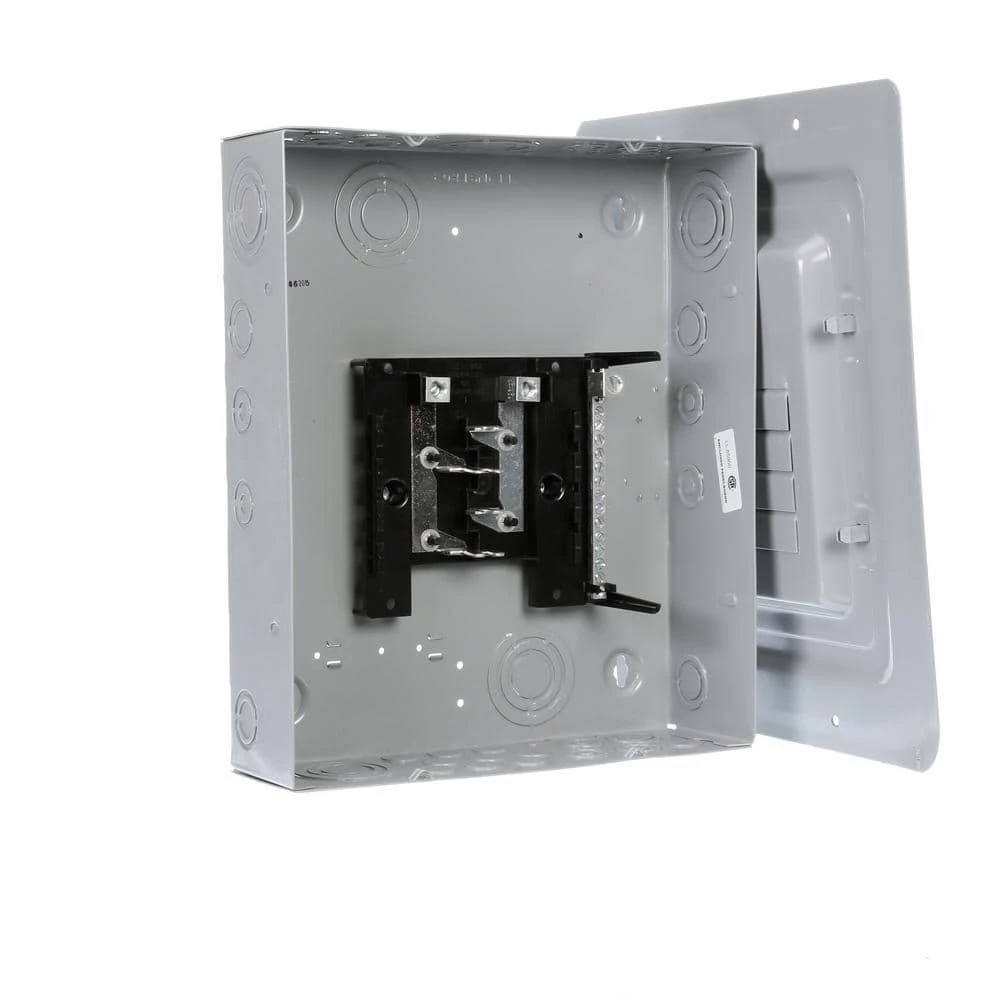

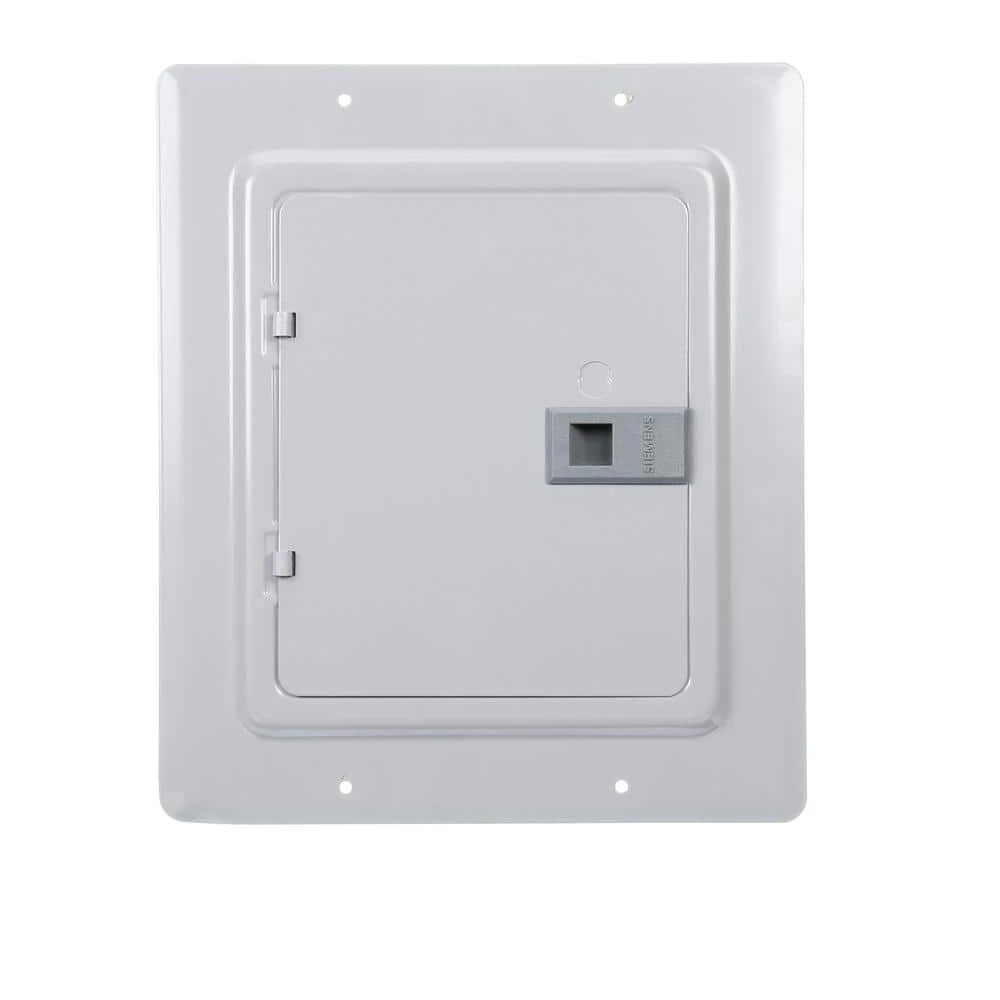

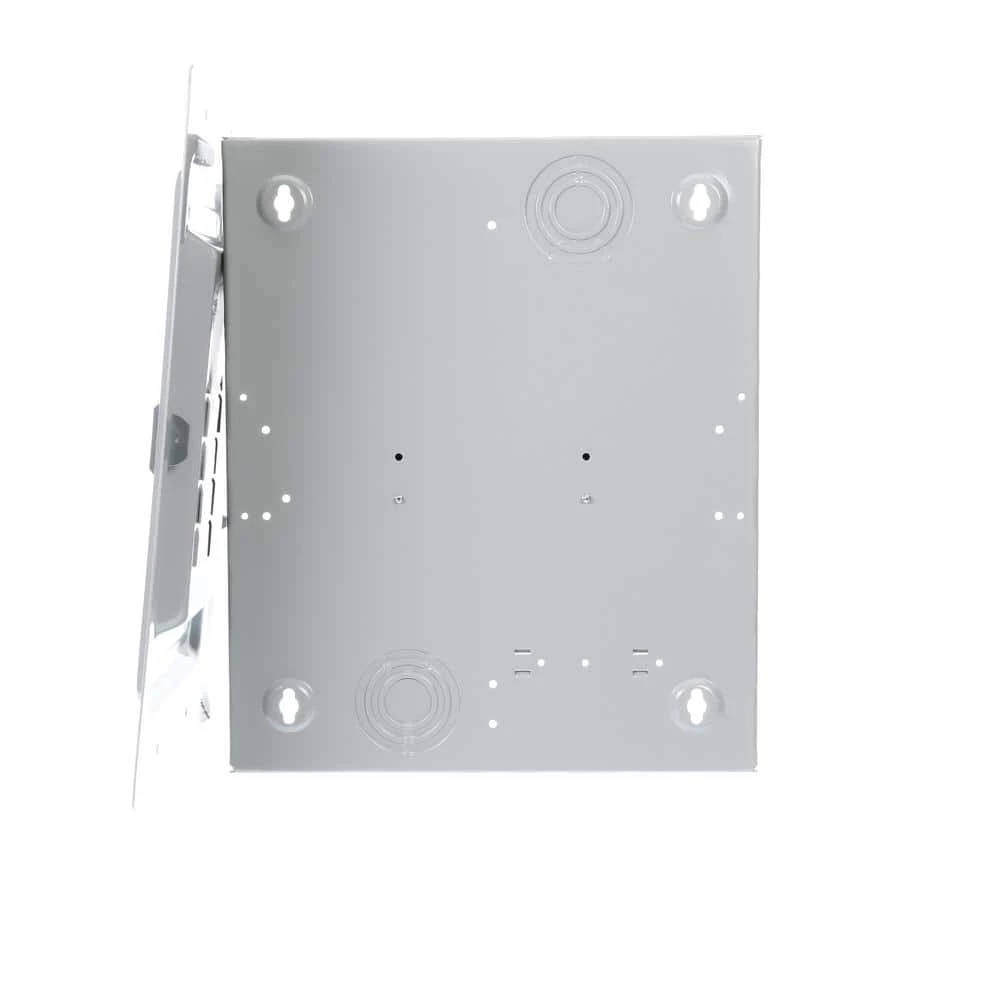

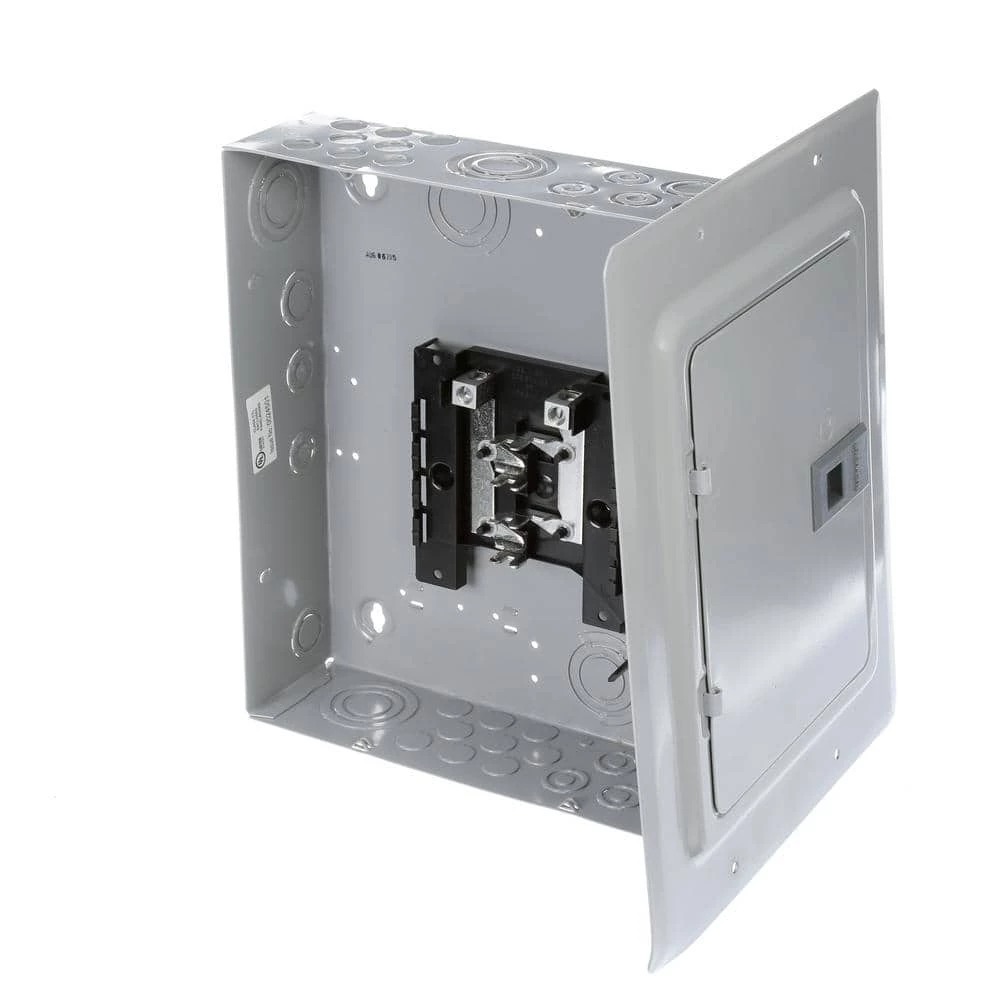

The Siemens Industry, Inc. EQ 125 Amp 8-Space 16-Circuit Indoor Main Lug Load Center has a flush-mount design and is NEMA 1R rated for indoor use. The load center is a single-phase, 3-wire unit with an aluminum buss bar for excellent conductivity. This load center is ANSI certified and UL listed with a rating of up to 240-Volt.
- Type-G90, hot-dipped galvanized carbon steel enclosure provides corrosion protection
- Aluminum bus bar
- Interiors offer removal in seconds
- 1-piece bus bar construction designed for use with circuit breakers
- Positive load side circuit breaker hook rails
- Ideal for sub-feed applications
- Flush mount
- 120/240 VAC
| Electrical Product Type | Main Lug/ Main Lug Kit |
|---|---|
| Phase Type | 1 Phase |
| Load center height (in.) | 16.75 |
| Load center depth (in.) | 5.25 |
| Manufacturer Warranty | 1 year |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 120/240 |
| Returnable | 90-Day |
| Product Weight (lb.) | 12 lb |
| Number of Spaces | 8 |
| Indoor/Outdoor | Indoor |
| Number of Circuits | 16 |
| NEMA Configuration Receptacle | No Receptacle |
| NEMA Configuration | NEMA 1 |
| Mounting Type | Bolt On |
| Maximum Amperage (amps) | 125 |
| Load Center Type | Main Lug |
| Load Center Mounting Type | Flush |
| Load center width (in.) | 14 |
