Original price was: $71.73.$50.93Current price is: $50.93.
Small Circuit Load Center
Suitable for use as service entrance equipment
Ideal for subfeed applications
- Fast and Secure Payments
- Nature-friendly materials, for a better planet.
- Service that stands out, online and always timely.
- Expertly Sourced, Quality Guaranteed

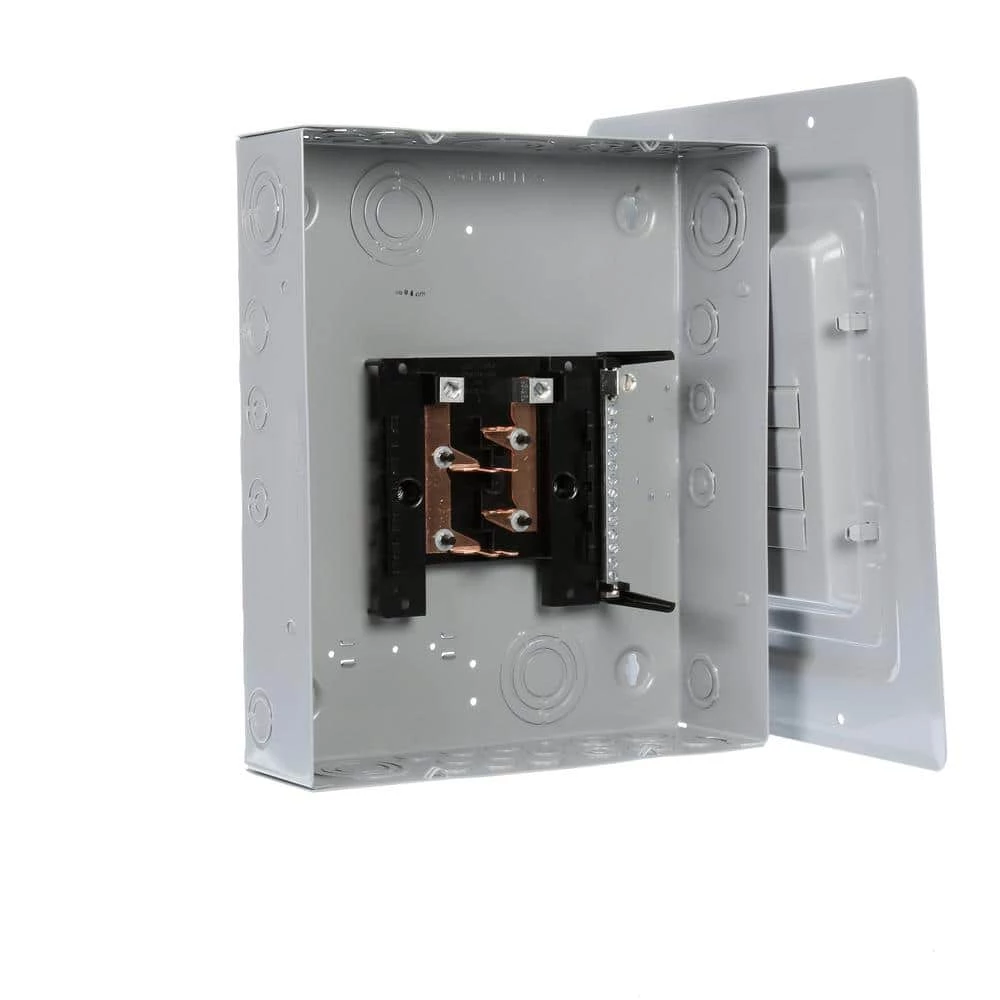

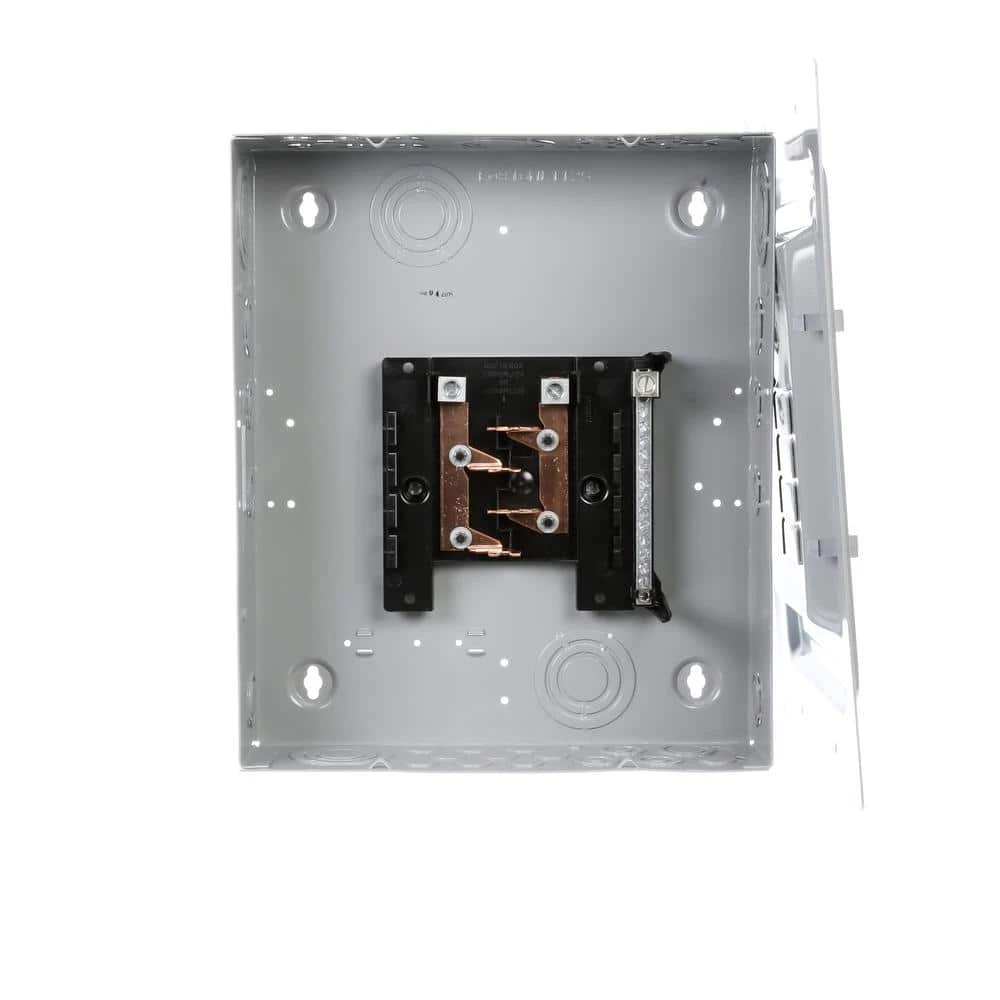

This 125 Amp 8-Space 16-Circuit Main Lug Load Center features copper bus bar for excellent conductivity. It is designed for superb corrosion resistance thanks to a hot-dipped galvanized carbon steel box that features an electrostatic polyester powder-coat finish. For safety, this load center is both UL listed as well as ANSI certified.
- Type-G90, hot-dipped galvanized carbon steel enclosure provides corrosion protection
- Interior offer removal in seconds
- Positive load side circuit breaker hook rails
- Flush mount
| Electrical Product Type | Main Lug/ Main Lug Kit |
|---|---|
| Phase Type | 1 Phase |
| Load center height (in.) | 5 |
| Load center depth (in.) | 16.4 |
| Manufacturer Warranty | 10 years |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 120/240 |
| Returnable | 90-Day |
| Product Weight (lb.) | 12.25 lb |
| Number of Spaces | 8 |
| Indoor/Outdoor | Indoor |
| Number of Circuits | 16 |
| NEMA Configuration Receptacle | No Receptacle |
| NEMA Configuration | NEMA 1 |
| Mounting Type | Bolt On |
| Maximum Amperage (amps) | 125 |
| Load Center Type | Main Lug |
| Load Center Mounting Type | Flush,Surface |
| Load center width (in.) | 14.2 |
Be the first to review “EQ 125 Amp 8-Space 16-Circuit Main Lug Flush Mount Load Center Copper Bus by Siemens”
