Original price was: $386.85.$97.99Current price is: $97.99.
Time-Saving Insta-wire feature
10 kA Interrupting Rating
Perfect panel for Residential/Commercial Power Distribution
- Fast and Secure Payments
- Nature-friendly materials, for a better planet.
- Service that stands out, online and always timely.
- Expertly Sourced, Quality Guaranteed

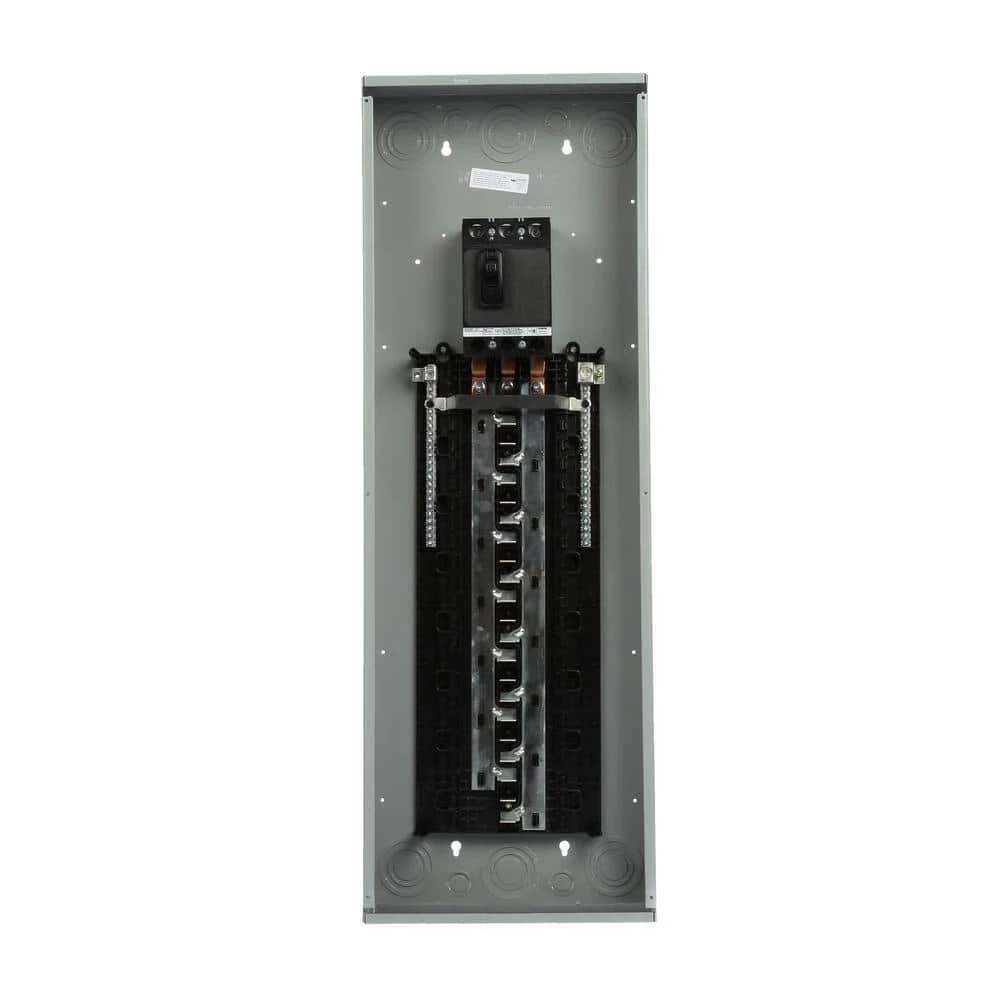

The new Siemens ES Series Load Center is the smart choice when value and quick installation are of highest priority. The ES Series load centers include labor saving features such as the patented Insta-wire and mounting trim tabs. These exclusive features make the ES Series load center the best load center for the value minded contractor.
- Ground bar field installed
- Aluminum bus
- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- Combination head screw on the neutrals, ground, trim, upper pan and bond screw provide installation flexibility
| Electrical Product Type | Load Center |
|---|---|
| Phase Type | 3 Phase |
| Load center height (in.) | 46.5 |
| Load center depth (in.) | 16 |
| Manufacturer Warranty | 10 years |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 240 |
| Returnable | 90-Day |
| Product Weight (lb.) | 45.86 lb |
| Number of Spaces | 42 |
| Indoor/Outdoor | Indoor |
| Number of Circuits | 42 |
| NEMA Configuration Receptacle | No Receptacle |
| NEMA Configuration | NEMA 1 |
| Mounting Type | Bolt On |
| Maximum Amperage (amps) | 150 |
| Load Center Type | Main Breaker |
| Load Center Mounting Type | Flush,Surface |
| Load center width (in.) | 5.75 |
