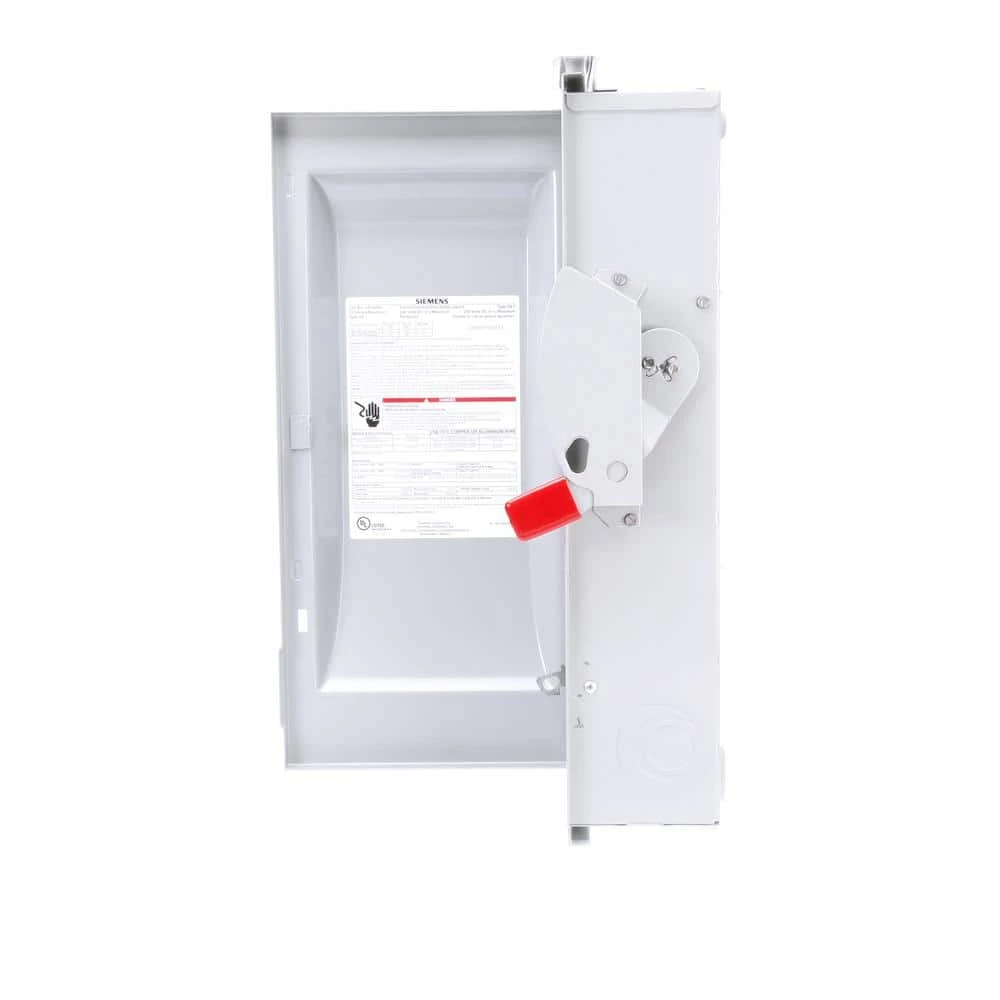

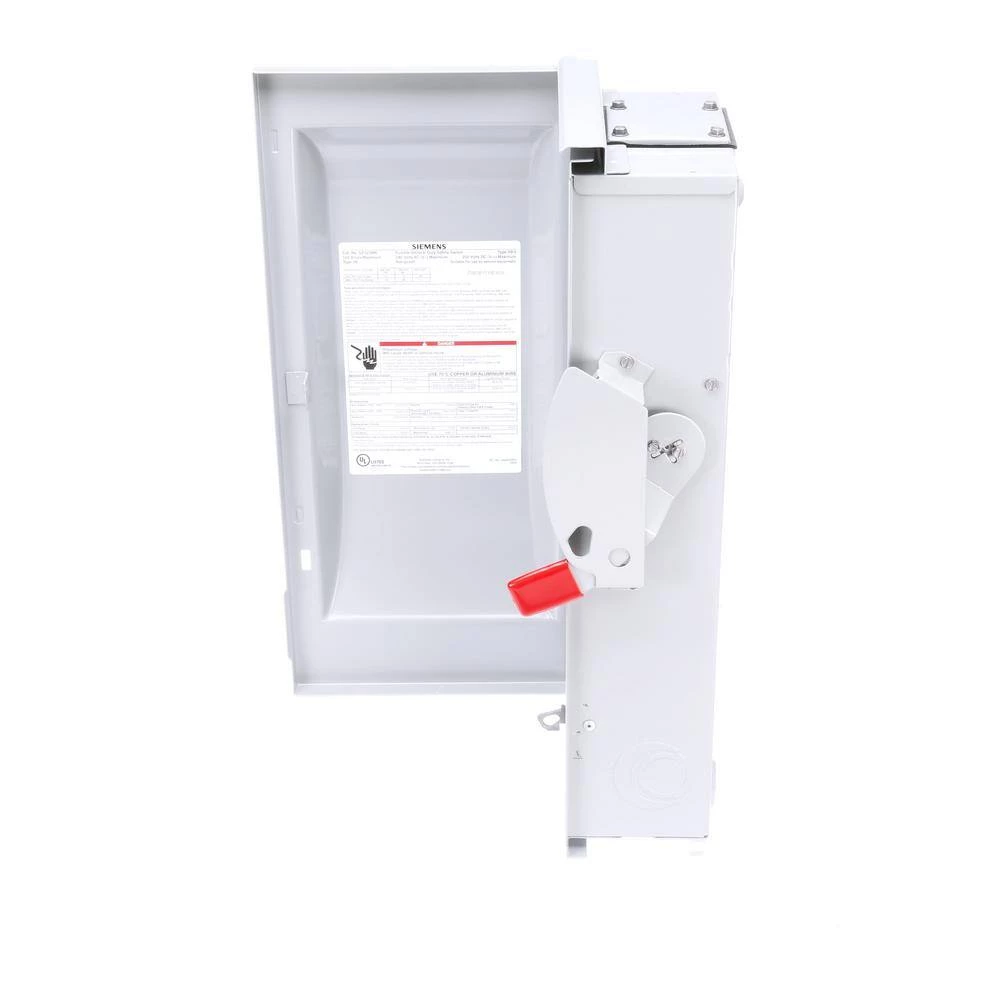

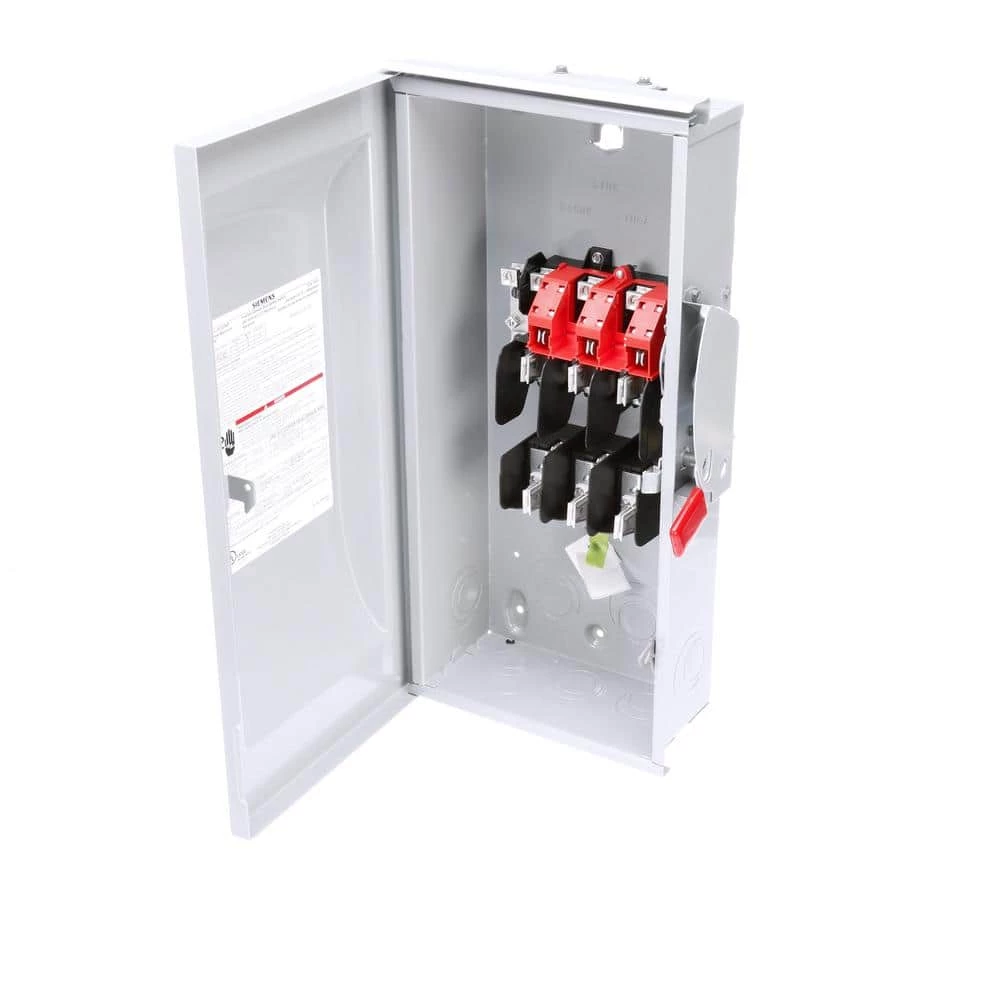

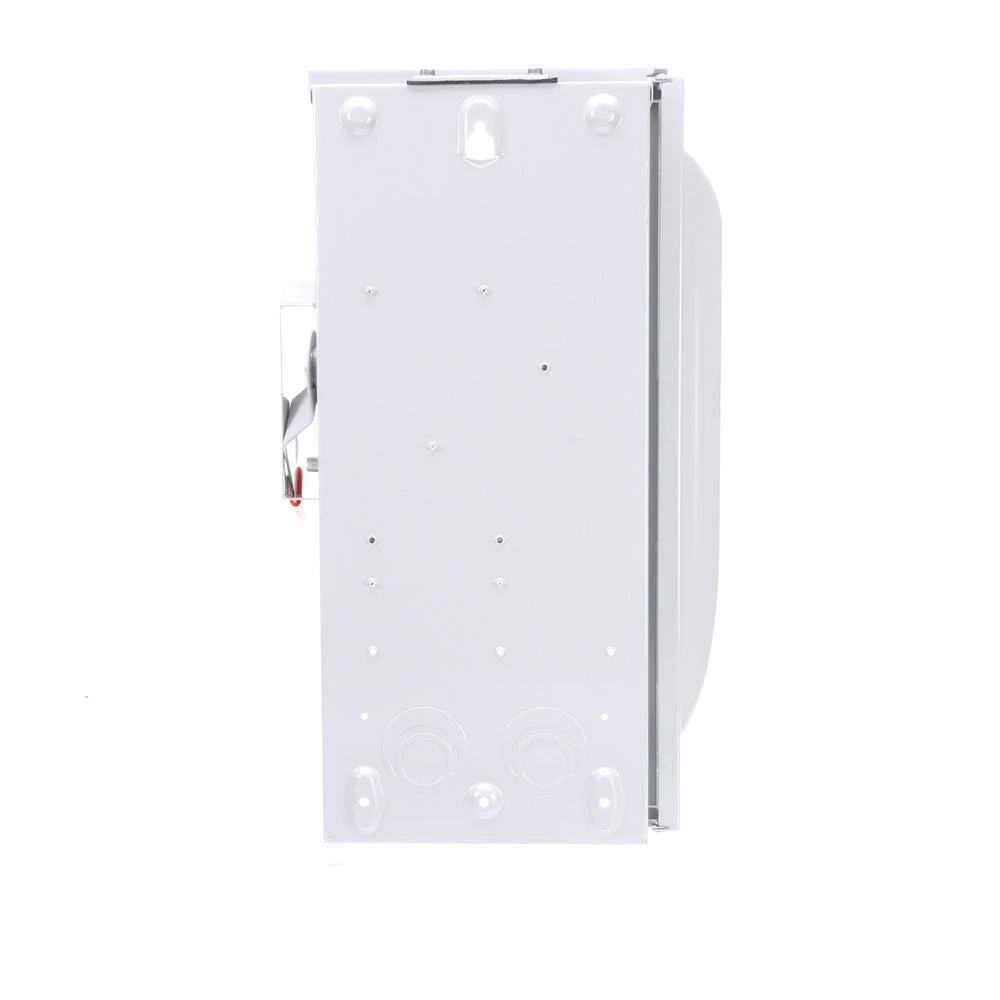

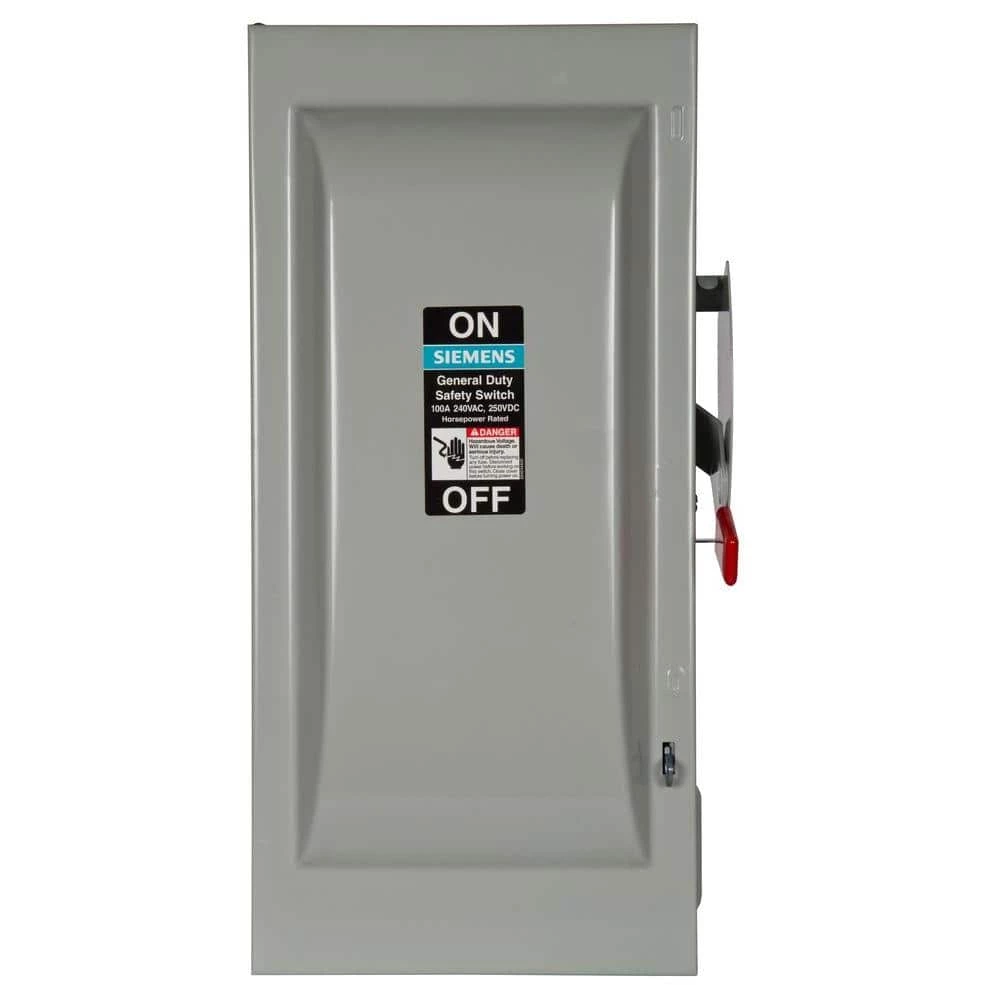

General Duty 100 Amp Triple Pole 240-Volt Outdoor Fusible Safety Switch with Neutral by Siemens

General Duty Safety Switches are intended for applications where reliable performance and continuity of service are needed, but where duty requirements are not severe and usual service conditions prevail. These switches are intended for use primarily with supply circuits rated 240-Volt AC or less where the available fault current is less than 100,000 Amps when used with Class R or T fuses or 10,000 Amps max when used with class H fuses.

• 120/240 Volt, single phase, 3 wire, fusible safety switch
• Quick-make, quick-break operating mechanism that ensures positive operation
• Generous wiring gutters that meet or exceed NEC wire-bending space requirements
• Visible blade, double-break switch action
• Highly visible on/off indication
• Single cover interlock
• Side-hinged door that opens 180˚s for easier wiring
• Unique enclosure design that adds rigidity and strength, its rolled edge prevents cuts and scrapes to conductors and to installer’s hands
• NEMA type 3R: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation, or internal icing
