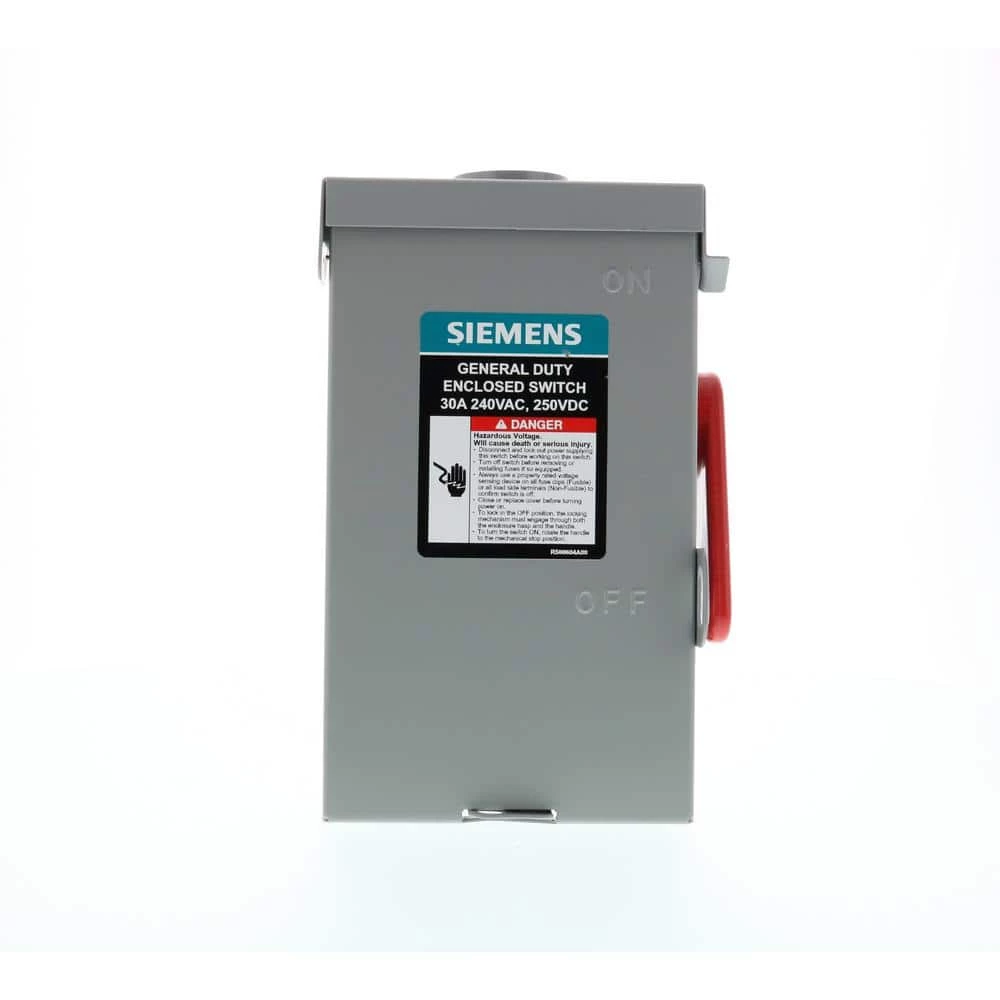

General Duty Safety Switches are intended for applications where reliable performance and continuity of service are needed, but where duty requirements are not severe and usual service conditions prevail. These switches are intended for use primarily with supply circuits rated 240-Volt AC or less. Where the available fault current is less than 100,000 Amp when used with Class R or T fuses or 10,000 Amp maximum when used with Class H fuses.
- New compact sizes for improved space efficiency
- New over-sized lugs for maximum wire range and easy termination, 30 Amp switches
- Visible blade, double break switching action
- Padlocking provisions to lock cover closed or to lock
- Horsepower rated
| Automatic/Manual | Manual |
|---|---|
| Power Distribution Features | Fusible |
| Product Height (in.) | 9 |
| Product Depth (in.) | 6 |
| Manufacturer Warranty | 1 Year |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 240 |
| Returnable | 90-Day |
| Product Weight (lb.) | 3 |
| Phase Type | 1 Phase |
| Electrical Product Type | Safety Switch |
| NEMA Configuration Receptacle | No Receptacle |
| NEMA Configuration | NEMA 3 |
| Maximum Wattage | 240 |
| Maximum Amperage (amps) | 30 |
| Indoor/Outdoor | Outdoor |
| Fused | Fused |
| Features | Mountable,On/Off Switch,Overload Protection,Short Circuit Protection |
| Product Width (in.) | 4 |
