Original price was: $31.20.$19.66Current price is: $19.66.

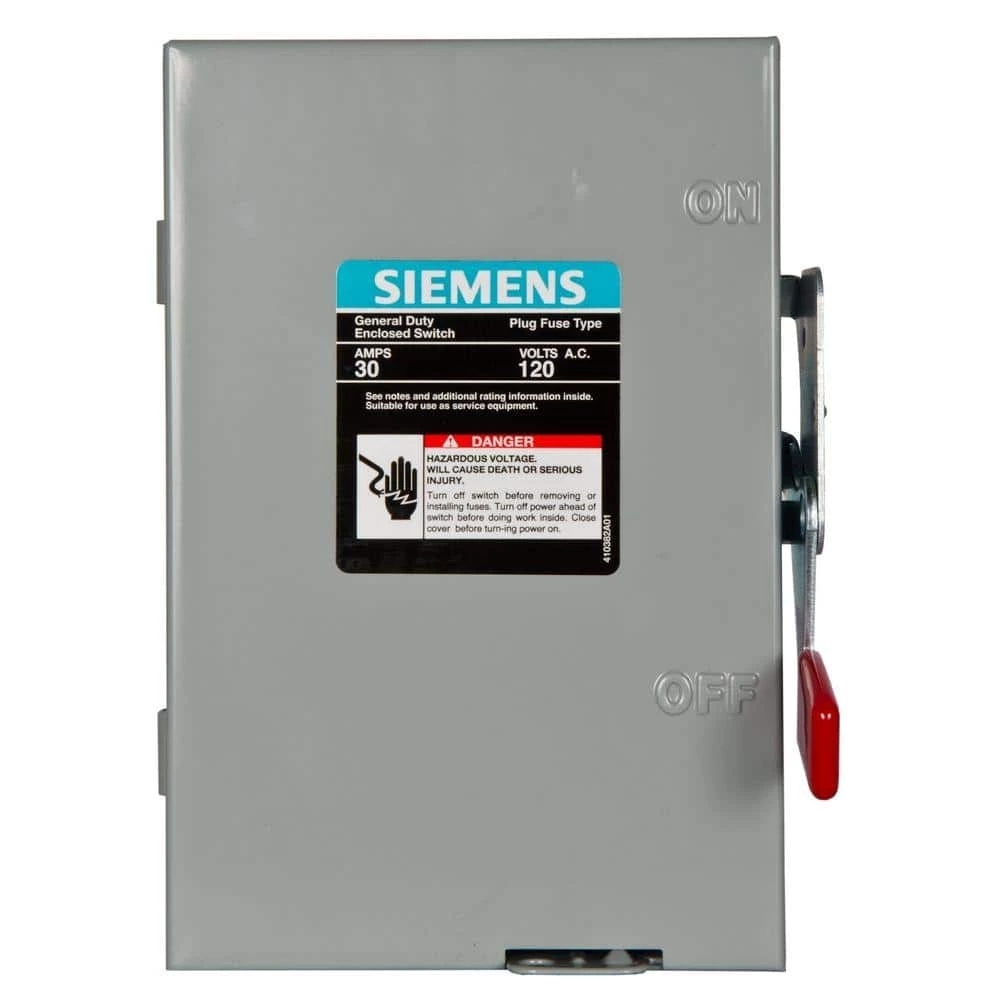

Service Entrance labeled with Copper Bus
30 Amp, 1-Pole, 120/240V with Compact design
Fusible, with Solid Neutral
- Fast and Secure Payments
- Nature-friendly materials, for a better planet.
- Service that stands out, online and always timely.
- Expertly Sourced, Quality Guaranteed
General Duty Safety Switches are intended for applications where reliable performance and continuity of service are needed, but where duty requirements are not severe and usual service conditions prevail. These switches are intended for use primarily with supply circuits rated 240V AC or less where the available fault current is less than 100,000A when used with Class R or T fuses or 10,000A max when used with Class H fuses.
- 30 Amp fusible, indoor rated safety switch
- Compact size
- Horsepower rated
- Quick-make, quick-break operating mechanism that ensures positive operation
- Generous wiring gutters that meet or exceed NEC wire-bending space requirements
- Highly visible on/off indication
- Padlock-off handle feature
- Door padlock provision
- Lugs suitable for copper or aluminum wire
- Switches accept Edison base plug fuses
| Automatic/Manual | Manual |
|---|---|
| Power Distribution Features | Fusible |
| Product Height (in.) | 4.9 |
| Product Depth (in.) | 9.1 |
| Manufacturer Warranty | 1 YEAR |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 120 |
| Returnable | 90-Day |
| Product Weight (lb.) | 3.35 |
| Phase Type | 1 Phase |
| Electrical Product Type | Safety Switch |
| NEMA Configuration Receptacle | No Receptacle |
| NEMA Configuration | NEMA 1 |
| Maximum Wattage | 0 |
| Maximum Amperage (amps) | 30 |
| Indoor/Outdoor | Indoor |
| Fused | Fused |
| Features | Mountable,On/Off Switch,Overload Protection,Short Circuit Protection |
| Product Width (in.) | 6.6 |
