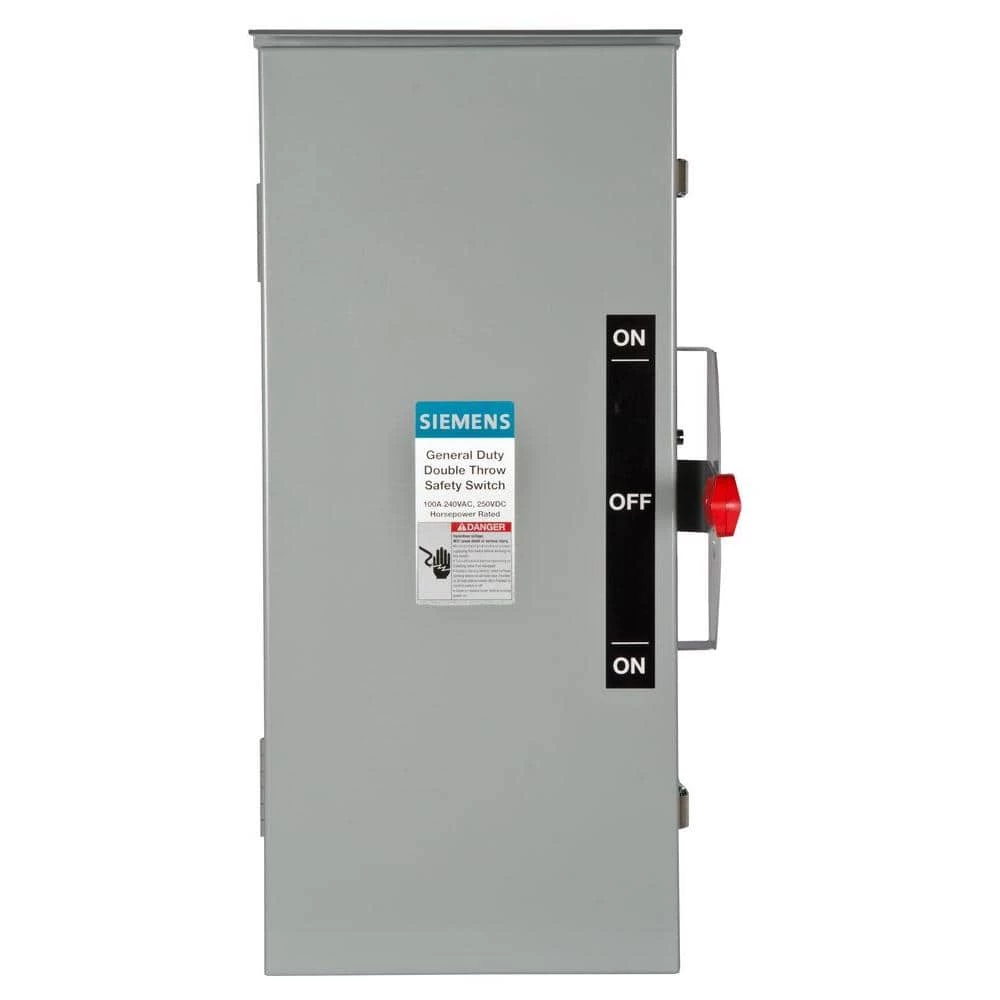

General Duty Double Throw 100 Amp 240-Volt 3-Pole Outdoor Non-Fusible Safety Switch by Siemens

Double Throw switches are intended to transfer loads from 1 power source to another. All 2 and 3-pole double throw switches are suitable for use as service equipment including non-fusible versions when used in combination with a UL listed circuit breaker or fusible switch. All are UL Listed and both horsepower and load break rated. Switches are rated for use on systems up to 10,000 Amp when protected with Class H fuses or 100,000 Amp when protected with Class R or Class T fuses, they can also be used to connect a single source of power to either of 2 loads.

• 100 Amp, 3 pole, 240-Volt, non-fusible safety switch
• NEMA type 3R: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation, or internal icing
• Quick-make and break switching action
• Double break visible blade design
• Highly visible on/off indication
• Modular design allows quick and easy replacement of parts
• Front removable lugs which can easily be converted to copper body or compression type lugs
• Defeatable dual cover interlock
• All copper current carrying parts
• Tangential knockouts
• Handle is padlockable in off position
