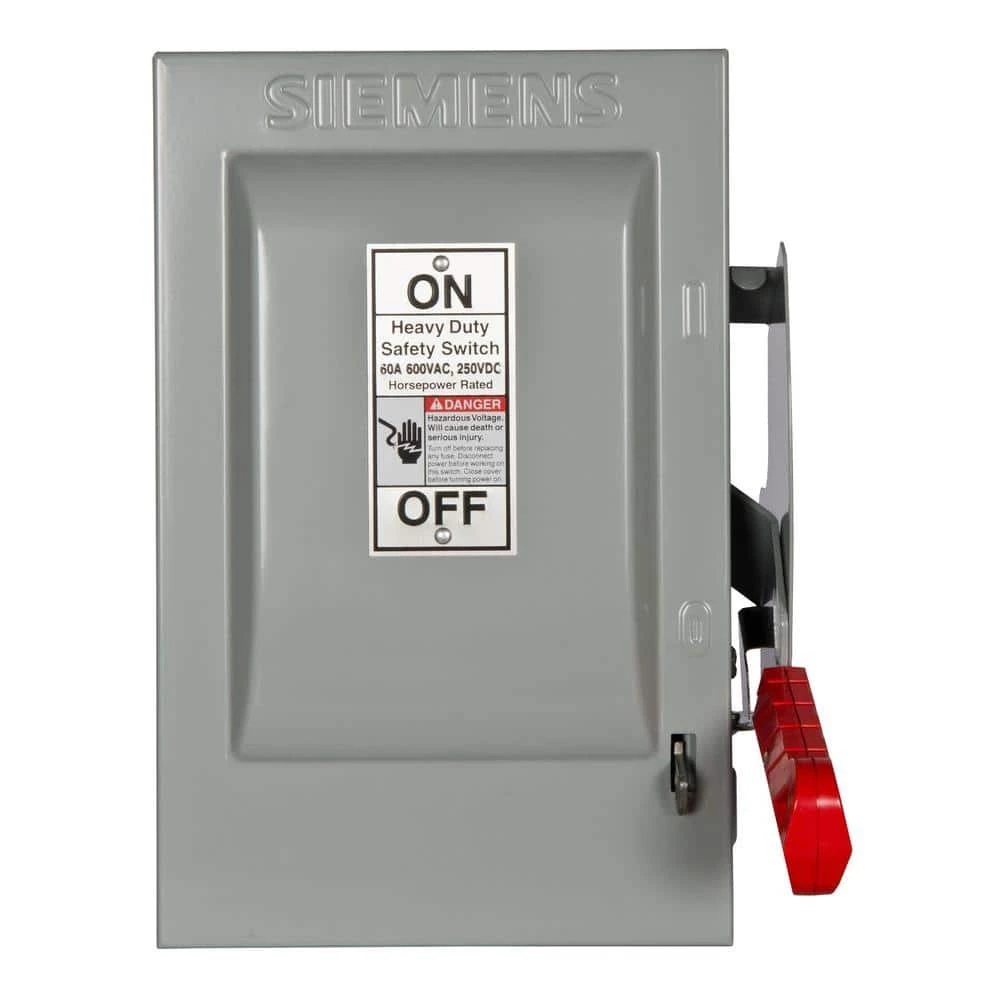

Heavy Duty 60 Amp 600-Volt 3-Pole Indoor Non-Fusible Compact Safety Switch by Siemens

Heavy Duty Safety Switches are available in 30-1200 Amp ratings and in type 1, 3R, 12 and 4X enclosures. Both fusible and non-fusible versions are offered, they can be used on circuits that are rated through 200K when protected by or used with Class R or J fuses, they feature quick make and break operation and visible blade construction.

• 60 Amp, 3 pole, 600-Volt, 3 wire non-fusible safety switch
• NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
• Quick-make, quick-break operating mechanism that ensures positive operation

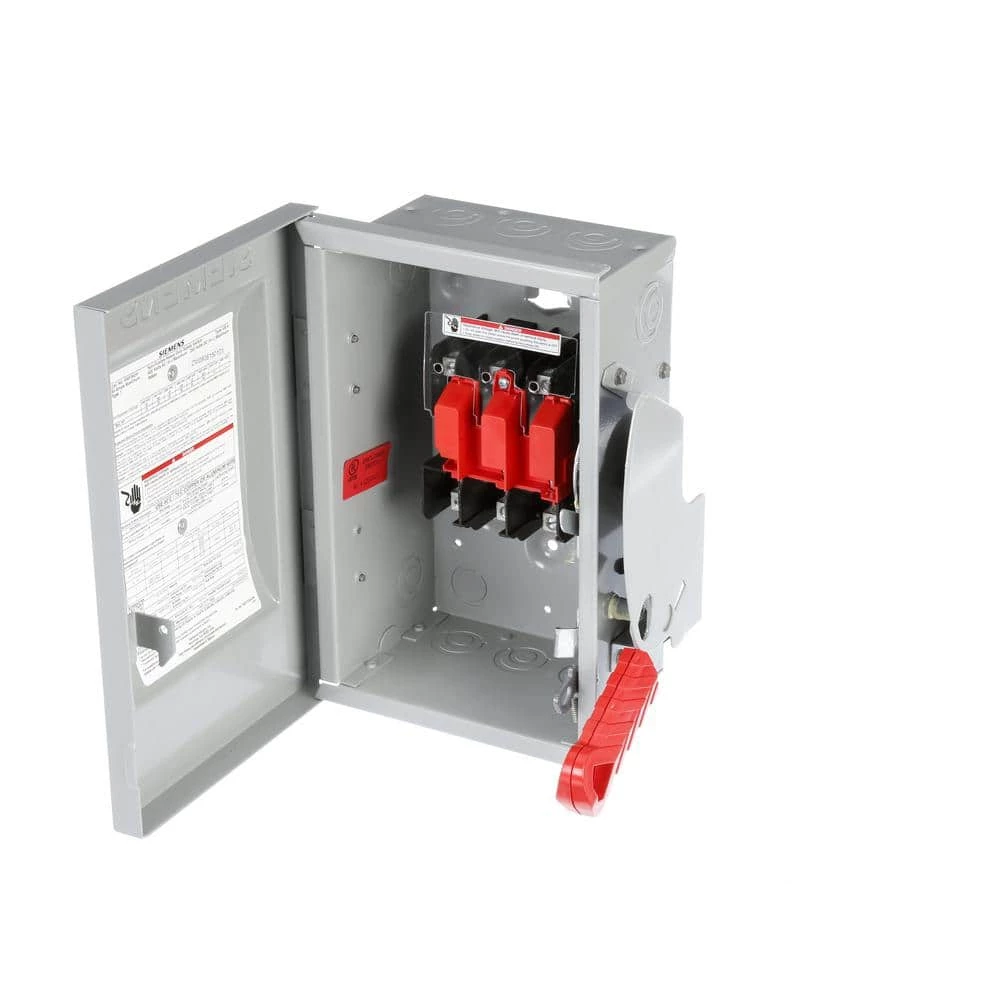

• Visible blade, double-break switching action
• Arc chutes dissipate heat and prolong switch life

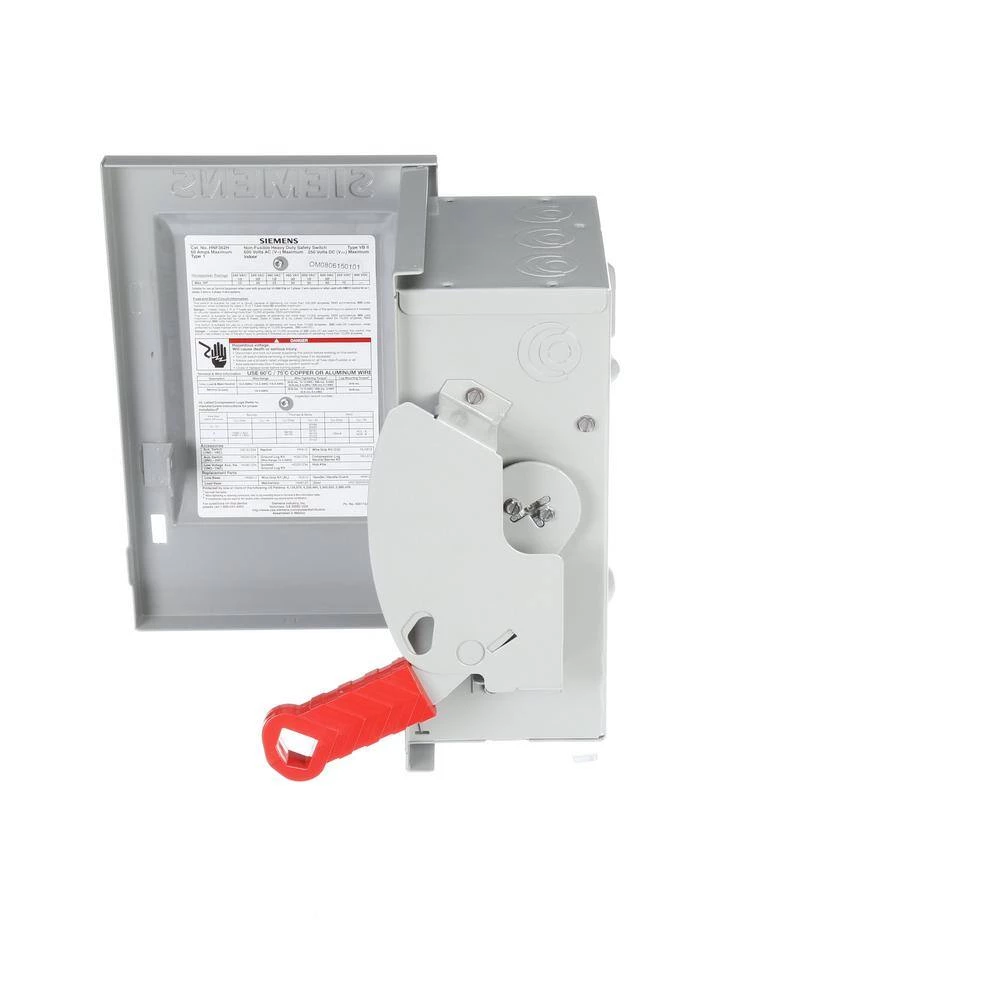

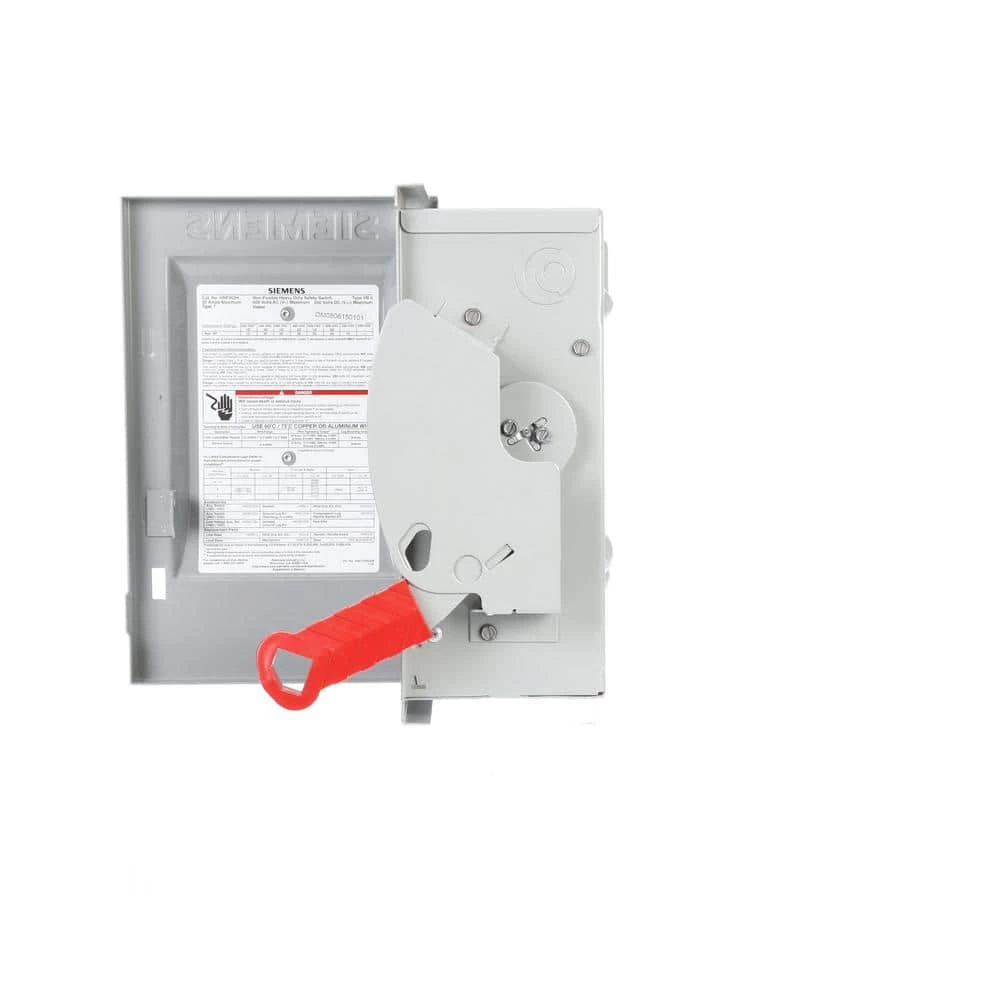

• Highly visible red handle grip is designed for hook stick operation
• Defeatable dual cover interlock
• Center punch provided for field drilling to allow on padlocking
• Generous top, bottom and side gutters that meet or exceed NEC wire-bending space requirements
• Tangential knockouts for easy conduit lineup

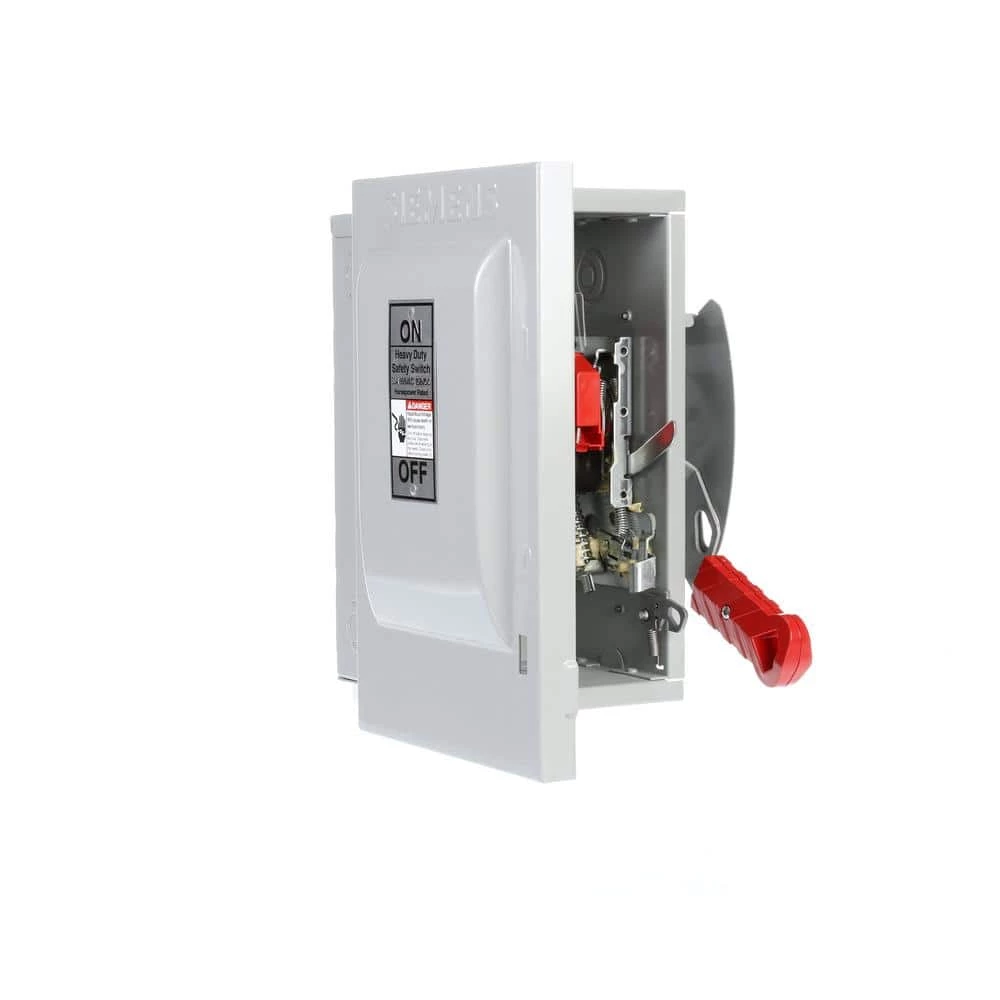

• Side-hinged door that opens past 180° for easier wiring
• Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installer’s hands
• Spring reinforced fuse clips that assure reliable contact for cool operation
• Front removable mechanical lugs that are suitable for CU/Al 60° or 75°C conductors
• Lugs are field convertible to copper body and to a wide variety of compression connectors
• Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
• Door latch securely holds door closed and allows cover padlocking
