PL Series 200 Amp 24-Space 42-Circuit Main Lug Load Center by Siemens

Siemens introduces PL Series Load Centers – a new high quality and feature-rich line of load center products to meet applications for virtually every need. The PL Series load center provides maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PL load centers feature the patented Insta-wire neutral/ground system, convertibility, copper bussing, and mounting tabs on the trim – these features were specifically engineered to decrease installation time and increase flexibility.

• 3-phase, 200 Amp main lug load center with 24 spaces/42 circuits
• Features Siemens patented insta-wire technology which allows for quick and easy installation because screws are already backed out, ready for wire insertion on ground and neutral bars
• Copper bus
• All devices are provided with 2 factory installed ground bars
• Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
• All PL series devices convertible from main lug to main breaker and vice versa
• Mounting tabs on the trim hold the load center in place freeing up both hands to drive the trim screws

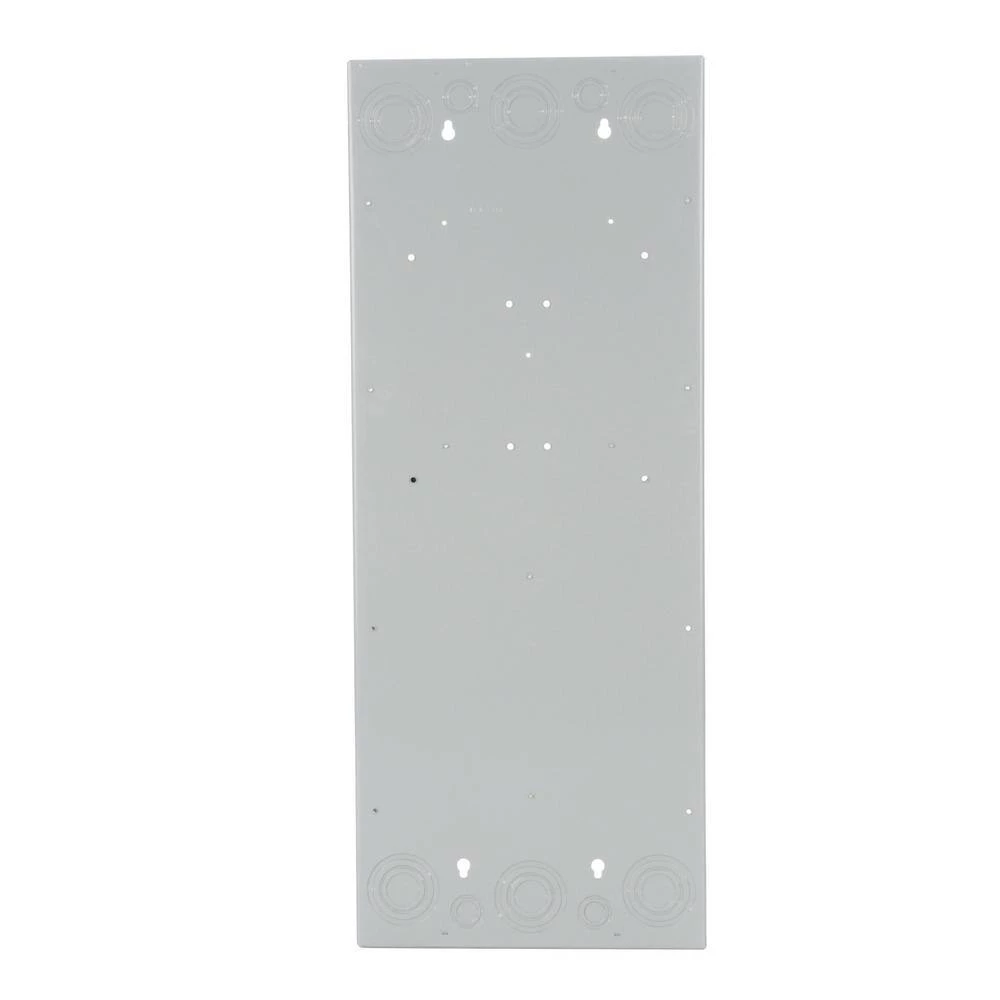

• A rigid, sturdy base pan provides the ruggedness required for the harshest applications
• NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
