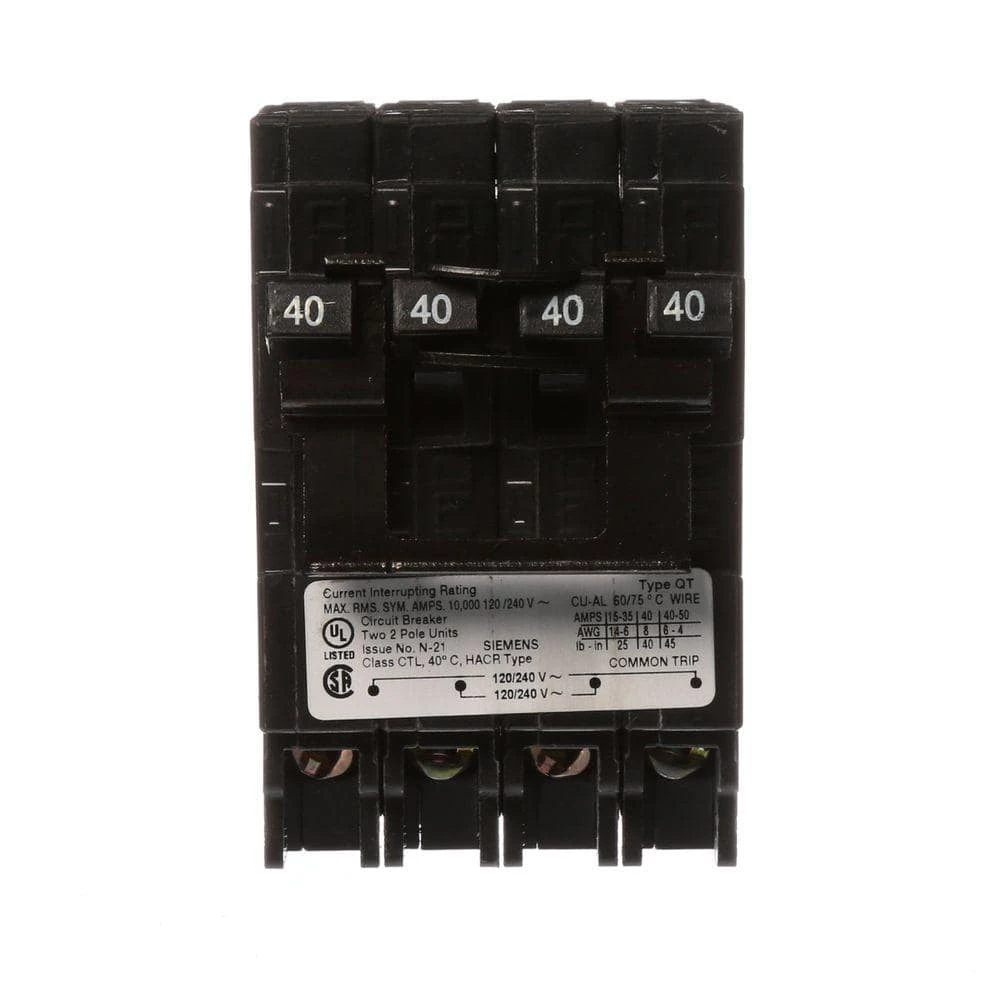

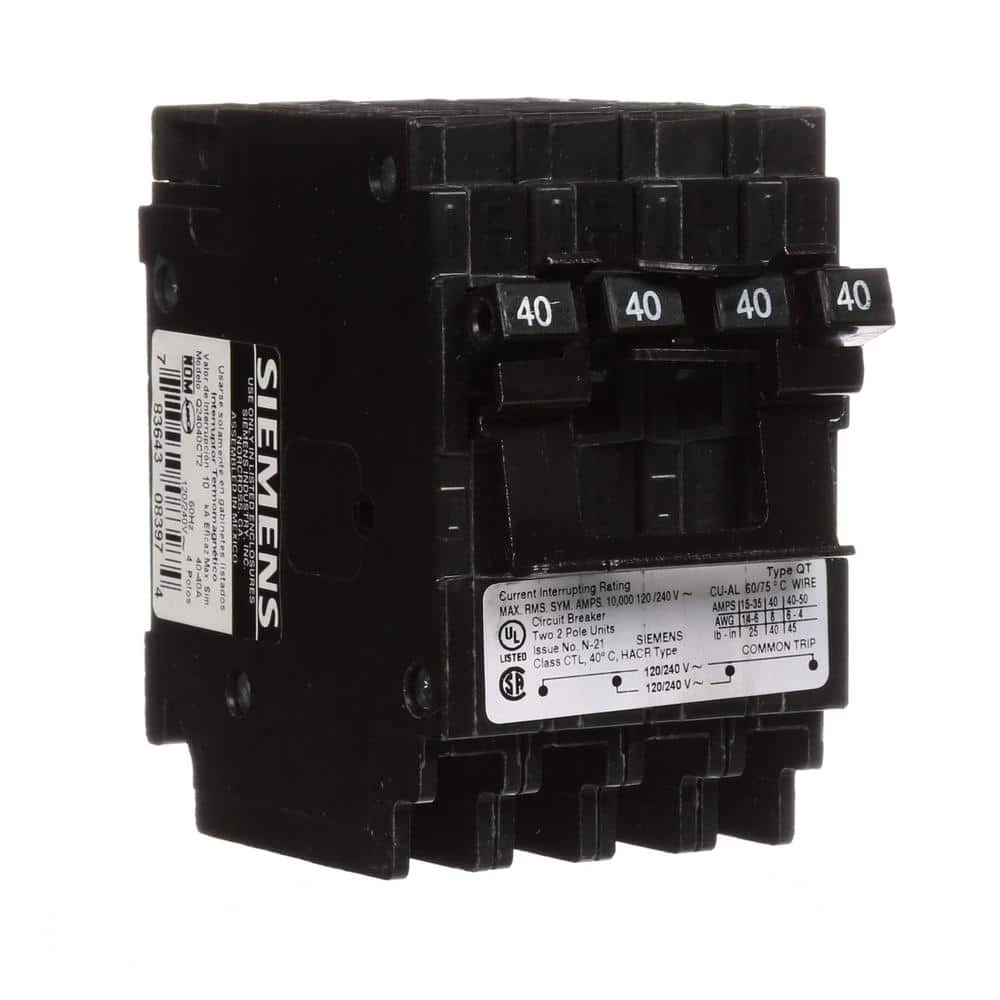

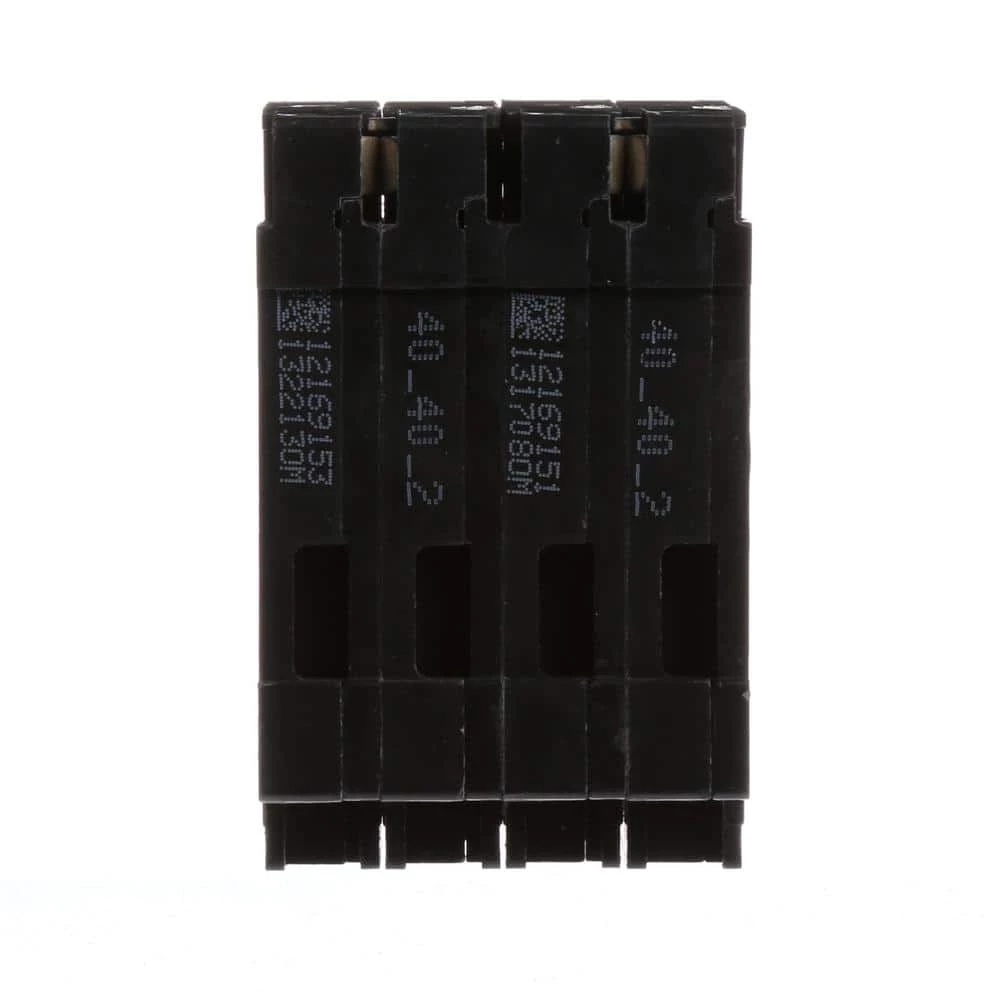

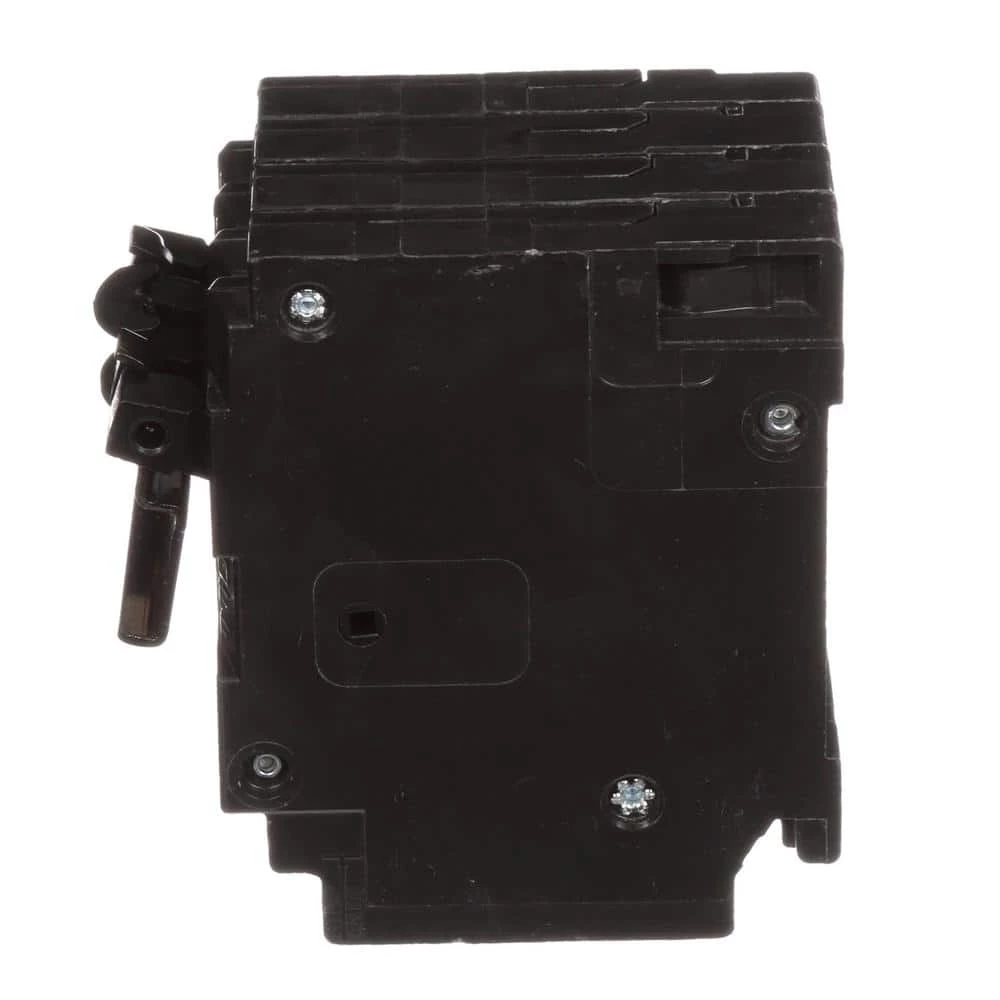

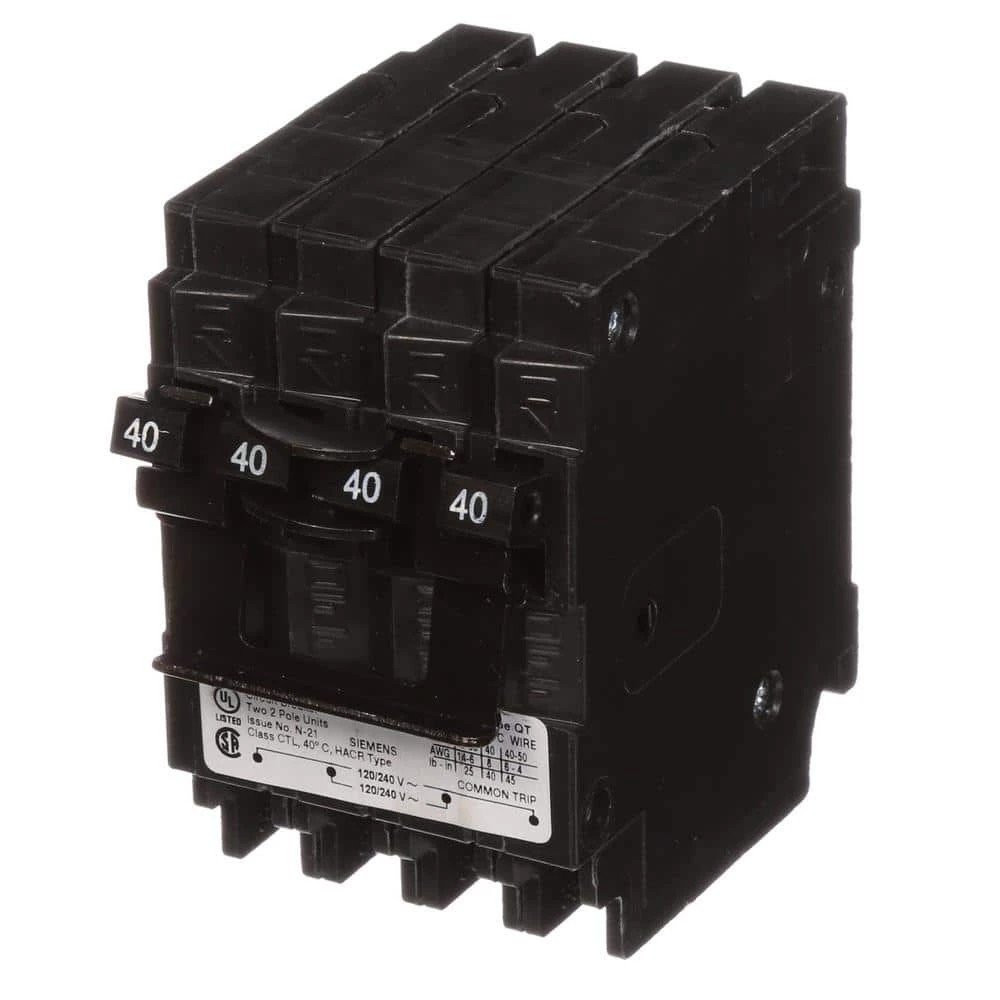

Two 40 Amp Double Pole Type QT Quad Circuit Breaker by Siemens

Siemens Quadplex Type QT breakers are a 1/2 in. frame per pole and are suitable for use in Siemens panels that allow CTL type QT breakers. This Breaker has (2) 40 Amp Double Pole Breaker(s) in one 2 in. housing. Siemens strongly recommends against the use of used breakers. The installation of used breakers in a Siemens panel will void the warranty on the panel. Siemens does not sell used breakers and has not approved any 3rd party sellers to do so. Siemens type QT dual circuit breakers are 1 in. wide and consist of (2) 1-pole breakers, in varying combinations of ampere ratings from 15 to 30 Amp. Type QT quad circuit breakers are 2 in. wide and consist of either (1) 2-pole and (2) 1-pole, or (2) 2-pole breakers. 2-pole constructions range from 15-50 Amps and are available with internal common trip. All type QT circuit breakers are plug-in style and load terminals are provided with the units. They are rated for 120/240-Volt AC and calibrated for 40C maximum ambient applications. The standard interrupting rating is 10k AIC.

• Two 40 Amp double pole circuit breakers
• Quadplex 1/2 in. frame
• Plug in type
• Space saving design allows 2 poles to fit in a 1 in. panel space
• 10K AIC series rating
• 120/240 VAC
• UL listed
• CSA certified
• HACR rated
• Designed for residential/commercial applications
